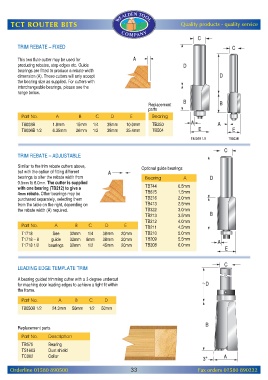

Page 35 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

TRIM REBATE – FIXED

This two flute cutter may be used for
producing rebates, step edges etc. Guide
bearings are fitted to produce a rebate width
dimension (A). These cutters will only accept
the bearing size as supplied. For cutters with
interchangeable bearings, please see the
range below.

Replacement
parts
Part No. A B C D E Bearing
T8003B 1.8mm 15mm 1/4 38mm 10.0mm TB250
T8006B 1/2 6.35mm 26mm 1/2 38mm 25.4mm TB504
T8006B 1/2 T8003B

TRIM REBATE – ADJUSTABLE

Similar to the trim rebate cutters above, Optional guide bearings
but with the option of fitting different
bearings to alter the rebate width from Bearing A
0.5mm to 6.0mm. The cutter is supplied
with one bearing (TB212) to give a TB744 0.5mm
4mm rebate. Other bearings may be TB675 1.5mm
purchased separately, selecting them TB216 2.0mm
from the table on the right, depending on TB413 2.5mm
the rebate width (A) required. TB322 3.0mm
TB213 3.5mm
TB212 4.0mm
Part No. A B C D E TB211 4.5mm
T1718 See 32mm 1/4 38mm 20mm TB210 5.0mm
T1718 – 8 guide 32mm 8mm 38mm 20mm TB209 5.5mm
T1718 1/2 bearings 32mm 1/2 45mm 20mm TB208 6.0mm

LEADING EDGE TEMPLATE TRIM

A bearing guided trimming cutter with a 3 degree undercut
for maching door leading edges to achieve a tight fit within
the frame.

Part No. A B C D
T8050B 1/2 24.3mm 50mm 1/2 50mm

Replacement parts

Part No. Description
TB575 Bearing
TS1603 Dust shield
TC002 Collar
