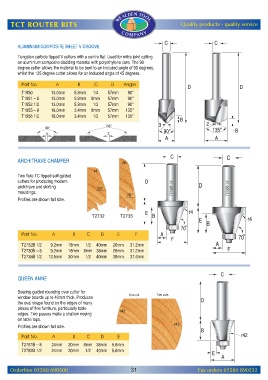

Page 33 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ALUMINIUM COMPOSITE SHEET V GROOVE

Tungsten carbide tipped V cutters with a centre flat. Used for mitre joint cutting
on aluminium composite cladding material with polyethylene core. The 90
degree cutter allows the material to be bent to an included angle of 90 degrees,
whilst the 135 degree cutter allows for an included angle of 45 degrees.

Part No. A B C D Angle
T1950 13.0mm 5.9mm 1/4 57mm 90°
T1951 – 8 13.0mm 5.9mm 8mm 57mm 90°
T1952 1/2 13.0mm 5.9mm 1/2 57mm 90°
T1955 – 8 18.0mm 3.4mm 8mm 57mm 135°
T1956 1/2 18.0mm 3.4mm 1/2 57mm 135°

ARCHITRAVE CHAMFER

Two flute TC tipped self guided
cutters for producing modern
architrave and skirting T2732B 1/2 T2735B 1/2
mouldings.
Profiles are shown full size.

Part No. A B C D E F

T2732B 1/2 9.2mm 18mm 1/2 40mm 26mm 31.2mm
T2730B – 8 9.2mm 18mm 8mm 38mm 26mm 31.2mm
T2735B 1/2 12.5mm 30mm 1/2 40mm 38mm 37.6mm

QUEEN ANNE

Bearing-guided rounding over cutter for Two cuts
window boards up to 40mm thick. Produces One cut
the oval shape found on the edges of many
pieces of fine furniture, particularly table
edges. Two passes make a shallow nosing
on table tops.
Profiles are shown full size.

Part No. A B C D E
T2761B – 8 24mm 20mm 8mm 38mm 5.6mm
T2762B 1/2 24mm 20mm 1/2 40mm 5.6mm
