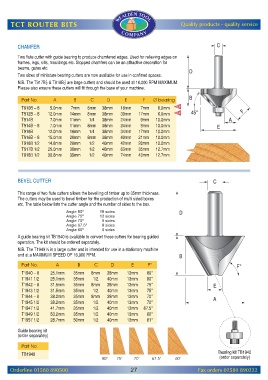

Page 29 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

CHAMFER

Two flute cutter with guide bearing to produce chamfered edges. Used for relieving edges on
frames, legs, sills, mouldings etc. Stopped chamfers can be an attractive decoration for
beams, gates etc.
Two sizes of miniature bearing cutters are now available for use in confined spaces.
N.B. The T917B & T918B are large cutters and should be used at 16,000 RPM MAXIMUM.
Please also ensure these cutters will fit through the base of your machine.

Part No. A B C D E F bearing
T910B – 8 5.0mm 7mm 8mm 38mm 16mm 7mm 6.0mm
T912B – 8 12.0mm 14mm 8mm 38mm 30mm 17mm 6.0mm
T914B 7.0mm 11mm 1/4 38mm 24mm 9mm 10.0mm
T914B – 8 7.0mm 11mm 8mm 38mm 24mm 9mm 10.0mm
T916B 12.0mm 16mm 1/4 38mm 34mm 17mm 10.0mm
T916B – 8 15.0mm 20mm 8mm 38mm 40mm 21mm 10.0mm
T916B 1/2 14.6mm 20mm 1/2 40mm 42mm 20mm 10.0mm
T917B 1/2 25.0mm 30mm 1/2 40mm 63mm 35mm 12.7mm
T918B 1/2 30.6mm 35mm 1/2 40mm 74mm 43mm 12.7mm

BEVEL CUTTER

This range of two flute cutters allows the bevelling of timber up to 35mm thickness.
The cutters may be used to bevel timber for the production of multi sided boxes
etc. The table below lists the cutter angle and the number of sides to the box.
Angle 80º 18 sides
Angle 75º 12 sides
Angle 70º 9 sides
Angle 67.5º 8 sides
Angle 60º 6 sides
A guide bearing kit TB1940 is available to convert these cutters for bearing guided
operation. The kit should be ordered separately.
N.B. The T1949½ is a large cutter and is intended for use in a stationary machine
and at a MAXIMUM SPEED OF 16,000 RPM.

Part No. A B C D E F°
T1940 – 8 25.1mm 35mm 8mm 38mm 13mm 80°
T1941 1/2 25.1mm 35mm 1/2 40mm 13mm 80°
T1942 – 8 31.5mm 35mm 8mm 38mm 13mm 75°
T1943 1/2 31.5mm 35mm 1/2 40mm 13mm 75°
T1944 – 8 38.2mm 35mm 8mm 38mm 13mm 70°
T1945 1/2 38.2mm 35mm 1/2 40mm 13mm 70°
T1947 1/2 41.7mm 35mm 1/2 40mm 13mm 67.5°
T1949 1/2 53.2mm 35mm 1/2 40mm 13mm 60°
T1957 1/2 28.7mm 50mm 1/2 40mm 13mm 81°

Guide bearing kit
(order separately)

Part No.
Bearing kit TB1940
TB1940
(order separately)

Orderline 01580 890500 27 Fax orders 01580 890222
