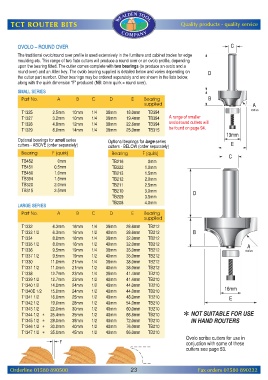

Page 25 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

OVOLO – ROUND OVER

The traditional ovolo/round over profile is used extensively in the furniture and cabinet trades for edge
moulding etc. This range of two flute cutters will produce a round over or an ovolo profile, depending
upon the bearing fitted. The cutter comes complete with two bearings (to produce an ovolo and a
round over) and an Allen key. The ovolo bearing supplied is detailed below and varies depending on
the cutter part number. Other bearings may be ordered separately and are shown in the lists below,
along with the quirk dimension “F” produced (NB: 0mm quirk = round over).

SMALL SERIES
Part No. A B C D E Bearing
supplied

T1325 2.5mm 10mm 1/4 38mm 18.0mm TB394
T1327 3.2mm 10mm 1/4 38mm 19.4mm TB394 A range of smaller
T1328 4.8mm 12mm 1/4 38mm 22.6mm TB394 ovolo/round cutters will
be found on page 94.
T1329 6.0mm 14mm 1/4 38mm 25.0mm TB315
Optional bearings for small series Optional bearings for large series
cutters - ABOVE (order separately) cutters - BELOW (order separately)
Bearing F (quirk) Bearing F (quirk)
TB452 0mm TB216 0mm
TB451 0.5mm TB322 1.0mm
TB450 1.0mm TB213 1.5mm
TB394 1.5mm TB212 2.0mm
TB320 2.0mm TB211 2.5mm
TB315 2.5mm TB210 3.0mm
TB209 3.5mm
TB208 4.0mm
LARGE SERIES
Part No. A B C D E Bearing
supplied
T1332 6.3mm 16mm 1/4 38mm 28.6mm TB212
T1333 1/2 6.3mm 16mm 1/2 40mm 28.6mm TB212
T1334 8.0mm 16mm 1/4 38mm 32.0mm TB212
T1335 1/2 8.0mm 16mm 1/2 40mm 32.0mm TB212
T1336 9.5mm 19mm 1/4 38mm 35.0mm TB212
T1337 1/2 9.5mm 19mm 1/2 40mm 35.0mm TB212
T1330 11.0mm 21mm 1/4 38mm 38.0mm TB212
T1331 1/2 11.0mm 21mm 1/2 40mm 38.0mm TB212
T1338 12.7mm 23mm 1/4 38mm 41.4mm TB210
T1339 1/2 12.7mm 23mm 1/2 40mm 41.4mm TB210
T1340 1/2 14.0mm 24mm 1/2 40mm 44.0mm TB210
T1340E 1/2 15.0mm 24mm 1/2 40mm 44.0mm TB210
T1341 1/2 16.0mm 25mm 1/2 40mm 48.0mm TB210
T1342 1/2 19.0mm 28mm 1/2 40mm 54.0mm TB210
T1343 1/2 22.0mm 30mm 1/2 40mm 60.0mm TB210
T1344 1/2 25.4mm 35mm 1/2 40mm 66.8mm TB210 NOT SUITABLE FOR USE
T1345 1/2 28.0mm 38mm 1/2 40mm 72.0mm TB210 IN HAND ROUTERS
T1346 1/2 30.0mm 40mm 1/2 40mm 76.0mm TB210
T1347 1/2 35.0mm 45mm 1/2 40mm 86.0mm TB210
Ovolo scribe cutters for use in
conjuction with some of these
cutters see page 53.
