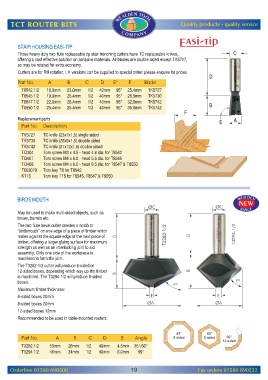

Page 21 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

STAIR HOUSING EASI-TIP
These heavy duty two flute replaceable tip stair trenching cutters have TC replaceable knives,
offering a cost effective solution on abrasive materials. All blades are double sided except TK5727,
so may be rotated for extra economy.
Cutters are for RH rotation, LH versions can be supplied to special order: please enquire for prices.
Part No. A B C D E° F Blade
T8542 1/2 16.0mm 23.0mm 1/2 42mm 95° 25.4mm TK5727
T8545 1/2 19.0mm 25.4mm 1/2 40mm 95° 28.5mm TK5730
T8547 1/2 22.0mm 25.4mm 1/2 40mm 95° 32.0mm TK5742
T8550 1/2 25.4mm 25.4mm 1/2 40mm 95° 35.0mm TK5742

Replacement parts
Part No. Description

TK5727 TC knife (23x7x1.5) single sided
TK5730 TC knife (26x9x1.5) double sided
TK5742 TC knife (27x12x1.5) double sided
TQ304 Torx screw M3 x 4.5 - head 4.6 dia. for T8542
TQ407 Torx screw M4 x 6.0 - head 5.5 dia. for T8545
TQ406 Torx screw M4 x 6.0 - head 8.5 dia. for T8547 & T8550
F002079 Torx key T8 for T8542
KT15 Torx key T15 for T8545, T8547 & T8550

BIRDS MOUTH

May be used to make multi-sided objects, such as
boxes, barrels etc.
The two flute bevel cutter creates a notch or
“birdsmouth” on one edge of a piece of timber which
mates against the square edge of the next piece of
timber, offering a larger gluing surface for maximum
strength as well as an interlocking joint to aid
assembly. Only one side of the workpiece is
machined to form the joint.
The T3282-1/2 cutter will produce 6-sided or
12-sided boxes, depending which way up the timber
is machined. The T3294-1/2 will produce 8-sided
boxes.
Maximum timber thickness:
6-sided boxes 20mm
8-sided boxes 20mm
12-sided boxes 12mm
Recommended to be used in table-mounted routers.

Part No. A B C D E Angle
T3282 1/2 53mm 26mm 1/2 40mm 4.5mm 35 /60
T3294 1/2 46mm 34mm 1/2 40mm 6.0mm 45

Orderline 01580 890500 19 Fax orders 01580 890222
