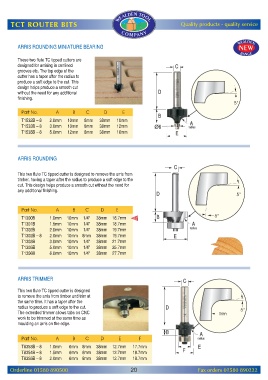

Page 22 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ARRIS ROUNDING MINIATURE BEARING

These two flute TC tipped cutters are
designed for arrising in confined
grooves etc. The top edge of the
cutter has a taper after the radius to
produce a soft edge to the cut. This
design helps produce a smooth cut
without the need for any additional
finishing.

Part No. A B C D E
T1532B – 8 2.0mm 10mm 8mm 38mm 10mm
T1533B – 8 3.0mm 10mm 8mm 38mm 12mm
T1535B – 8 5.0mm 12mm 8mm 38mm 16mm

ARRIS ROUNDING

This two flute TC tipped cutter is designed to remove the arris from
timber, having a taper after the radius to produce a soft edge to the
cut. This design helps produce a smooth cut without the need for
any additional finishing.

Part No. A B C D E
T1300B 1.0mm 10mm 1/4" 38mm 18.7mm
T1301B 1.5mm 10mm 1/4" 38mm 18.7mm
T1302B 2.0mm 10mm 1/4" 38mm 19.7mm
T1302B – 8 2.0mm 10mm 8mm 38mm 19.7mm
T1303B 3.0mm 10mm 1/4" 38mm 21.7mm
T1305B 5.0mm 10mm 1/4" 38mm 25.7mm
T1306B 6.0mm 10mm 1/4" 38mm 27.7mm

ARRIS TRIMMER

This two flute TC tipped cutter is designed
to remove the arris from timber and trim at
the same time. It has a taper after the
radius to produce a soft edge to the cut.
The extended timmer allows tabs on CNC
work to be trimmed at the same time as
moulding an arris on the edge.

Part No. A B C D E F

T8353B – 8 1.0mm 6mm 8mm 38mm 12.7mm 17.7mm
T8354B – 8 1.5mm 6mm 8mm 38mm 12.7mm 18.7mm
T8355B – 8 2.0mm 6mm 8mm 38mm 12.7mm 19.7mm
