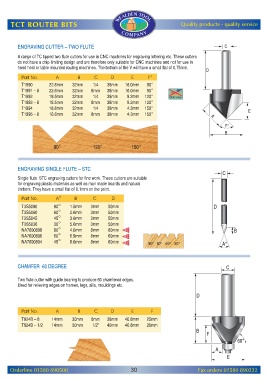

Page 32 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ENGRAVING CUTTER – TWO FLUTE

A range of TC tipped two flute cutters for use in CNC machines for engraving lettering etc. These cutters
do not have a chip-limiting design and are therefore only suitable for CNC machines and not for use in
hand held or table mounted routing machines. The bottom of the V will have a small flat of 0.75mm.

Part No. A B C D E F°
T1990 22.6mm 32mm 1/4 38mm 16.0mm 90°
T1991 – 8 22.6mm 32mm 8mm 38mm 16.0mm 90°
T1992 18.5mm 32mm 1/4 38mm 9.2mm 120°
T1993 – 8 18.5mm 32mm 8mm 38mm 9.2mm 120°
T1994 16.6mm 32mm 1/4 38mm 4.3mm 150°
T1995 – 8 16.6mm 32mm 8mm 38mm 4.3mm 150°

ENGRAVING SINGLE FLUTE – STC

Single flute STC engraving cutters for fine work. These cutters are suitable
for engraving plastic materials as well as man made boards and natural
timbers. They have a small flat of 0.1mm on the point.
Part No. A B C D

T3S5090 90 1.5mm 3mm 50mm
T3S5060 60 2.6mm 3mm 50mm
T3S5045 45 3.6mm 3mm 50mm
T3S5030 30 5.6mm 3mm 50mm
NA7600809 90 4.0mm 8mm 60mm
NA7600806 60 6.9mm 8mm 60mm
NA7600804 45 9.6mm 8mm 60mm

CHAMFER 60 DEGREE

Two flute cutter with guide bearing to produce 60 chamfered edges.
Used for relieving edges on frames, legs, sills, mouldings etc.

Part No. A B C D E F
T924B – 8 14mm 30mm 8mm 38mm 40.8mm 25mm
T924B – 1/2 14mm 30mm 1/2" 40mm 40.8mm 25mm

Orderline 01580 890500 30 Fax orders 01580 890222
