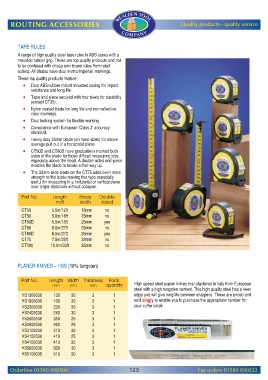

Page 125 - Router Catalogue 2021

WEALDEN TOOL
ROUTING ACCESSORIES Quality products - quality service
COM PAN Y

TAPE RULES

A range of high quality steel tape rules in ABS cases with a
moulded rubber grip. These are top quality products and not
to be confused with cheap own brand rules from retail
outlets. All blades have dual metric/imperial markings.
These top quality products feature:
Dual ABS/rubber robust moulded casing for impact
resistance and long life.
Tape end-piece secured with four rivets for durability
(except CT35).
Nylon coated blade for long life and non reflective
clear markings.
Dual locking system for flexible working.
Compliance with European ‘Class 2’ accuracy
standard.
Heavy duty 25mm blade (on most sizes) for above
average pull out in a horizontal plane.
CT50D and CT80D have graduations marked both
sides of the blade for those difficult measuring jobs,
especially above the head. A double-sided end-piece
enables the blade to locate either way up.
The 32mm wide blade on the CT75 adds even more
strength to the blade making this type especially
useful for measuring in a horizontal or vertical plane
over larger distances without collapse.

Part No. Length Blade Double
m/ft width sided
CT35 3.5m/12ft 16mm no
CT50 5.0m/16ft 25mm no
CT50D 5.0m/16ft 25mm yes
CT80 8.0m/27ft 25mm no
CT80D 8.0m/27ft 25mm yes
CT75 7.5m/25ft 32mm no
CT100 10.0m/33ft 25mm no

PLANER KNIVES – HSS (18% tungsten)

Part No. Length Width Thickness Pack
mm mm mm quantity High speed steel planer knives manufactured in Italy from European
steel with a high tungsten content. This high quality steel has a keen
HS1303030 130 30 3 1 edge and will give long life between sharpens. These are priced and
HS1903030 190 30 3 1 sold singly to enable you to purchase the appropriate number for
HS2303030 230 30 3 1 your cutter block.
HS2403030 240 30 3 1
HS2502530 250 25 3 1
HS2602530 260 25 3 1
HS3103030 310 30 3 1
HS4102530 410 25 3 1
HS4103030 410 30 3 1
HS5003030 500 30 3 1
HS5103030 510 30 3 1

Orderline 01580 890500 123 Fax orders 01580 890222
