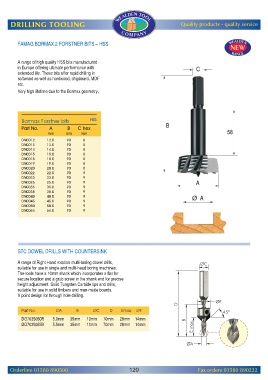

Page 122 - Router Catalogue 2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

FAMAG BORMAX 2 FORSTNER BITS – HSS

A range of high quality HSS bits manufactured
in Europe offering ultimate performance with
extended life. These bits offer rapid drilling in
softwood as well as hardwood, chipboard, MDF
etc.
Very high lifetime due to the Bormax geometry.

Bormax Forstner bits HSS
Part No. A B C hex
mm mm mm
DN0012 12.0 90 8
DN0013 13.0 90 8
DN0014 14.0 90 8
DN0015 15.0 90 8
DN0018 18.0 90 8
DN0019 19.0 90 8
DN0020 20.0 90 8
DN0022 22.0 90 9
DN0023 23.0 90 9
DN0025 25.0 90 9
DN0035 35.0 90 9
DN0038 38.0 90 9
DN0040 40.0 90 9
DN0045 45.0 90 9
DN0050 50.0 90 9
DN0054 54.0 90 9

STC DOWEL DRILLS WITH COUNTERSINK

A range of Right Hand rotation multi-boring dowel drills,
suitable for use in single and multi-head boring machines.
The tools have a 10mm shank which incorporates a flat for
secure location and a grub screw in the shank end for precise
height adjustment. Solid Tungsten Carbide tips and drills,
suitable for use in solid timbers and man-made boards.
V point design for through hole drilling.

Part No. A B C D Emax F
DG7035050R 5.0mm 35mm 10mm 70mm 28mm 14mm
DG7035055R 5.5mm 35mm 10mm 70mm 28mm 14mm

Orderline 01580 890500 120 Fax orders 01580 890222
