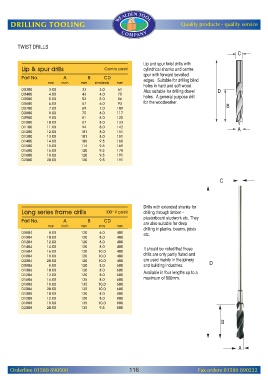

Page 118 - Router Catalogue 2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

TWIST DRILLS

Lip and spur twist drills with
Lip & spur drills& spur drills Centre cylindrical shanks and centre
Lip
Centre pointpoint
spur with forward bevelled
CD
Part A A B B CD
Part No.No.
mm
mm inch mm mm/inch mm edges. Suitable for drilling blind
inch
mm
mm/inch
mm
holes in hard and soft wood.
D0300 3.00 33 3.0 61 Also suitable for drilling dowel
D0400 4.00 43 4.0 75
D0500 5.00 52 5.0 86 holes. A general purpose drill
D0600 6.00 57 6.0 93 for the woodworker.
D0700 7.00 69 7.0 109
D0800 8.00 75 8.0 117
D0900 9.00 81 8.0 125
D1000 10.00 87 8.0 133
D1100 11.00 94 8.0 142
D1200 12.00 101 8.0 151
D1300 13.00 101 8.0 151
D1400 14.00 108 9.5 160
D1500 15.00 114 9.5 169
D1600 16.00 120 9.5 178
D1800 18.00 120 9.5 191
D2000 20.00 120 9.5 191

Drills with extended shanks for
Long
Long series frame drillsseries frame drills 100 V point V point drilling through timber –
100
plasterboard studwork etc. They
CD
Part No.No.
Part A A B B CD
are also suitable for deep
mm
mm
inch
mm
mm
mm inch mm mm mm
drilling in planks, beams, joists
D0804 8.00 120 6.0 400 etc.
D1004 10.00 120 8.0 400
D1204 12.00 120 8.0 400
D1404 14.00 120 8.0 400 It should be noted that these
D1604 16.00 120 10.0 400
D1804 18.00 120 10.0 400 drills are only partly fluted and
D2004 20.00 120 10.0 400 are used mainly in the joinery
D0806 8.00 120 8.0 600 and building industries.
D1006 10.00 120 8.0 600
Available in four lengths up to a
D1206 12.00 120 8.0 600
D1606 16.00 135 8.0 600 maximum of 800mm.
D1806 18.00 135 10.0 600
D2006 20.00 135 10.0 600
D1008 10.00 120 8.0 800
D1208 12.00 120 8.0 800
D1808 18.00 135 10.0 800
D2008 20.00 135 9.5 800

Orderline 01580 890500 116 Fax orders 01580 890222
