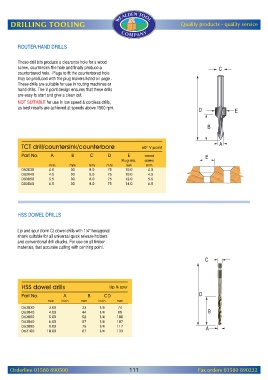

Page 113 - Router Catalogue 2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

ROUTER/HAND DRILLS

These drill bits produce a clearance hole for a wood
screw, countersink the hole and finally produce a
counterbored hole. Plugs to fit the counterbored hole
may be produced with the plug makers listed on page .
These drills are suitable for use in routing machines or
hand drills. The V point design ensures that these drills
are easy to start and give a clean cut.
NOT SUITABLE for use in low speed & cordless drills,
as best results are achieved at speeds above 1500 rpm.

TCT drill/countersink/counterbore 60 V point
Part No. A B C D E wood
Plug dia. screw
mm mm mm mm mm mm
DB3035 4.0 30 8.0 75 10.0 4.0
DB3040 4.5 30 8.0 75 10.0 4.5
DB3050 5.5 30 8.0 75 12.0 5.5
DB3060 6.5 30 8.0 75 14.0 6.5

HSS DOWEL DRILLS

Lip and spur (form C) dowel drills with 1/4" hexagonal
shank suitable for all universal quick release holders
and conventional drill chucks. For use on all timber
materials, fast accurate cutting with centring point.

TC tipped drillsdowel drills Centre pointLip & spur
HSS
CD
Part
Part No.No. A A B B CD
inch
in
mm
mm
mm
mm inch mm inch mm
D63030 3.00 33 1/4 74
D63040 4.00 44 1/4 88
D63050 5.00 52 1/4 100
D63060 6.00 57 1/4 107
D63080 8.00 75 1/4 117
D63100 10.00 87 1/4 133
