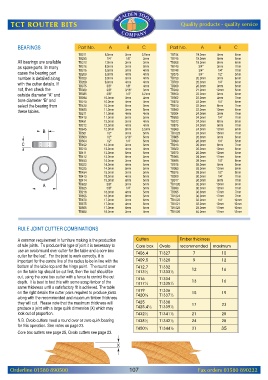

Page 109 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

BEARINGS Part No. A B C Part No. A B C
TB311 6.0mm 3mm 2.5mm TB744 19.0mm 4mm 6mm
TB250 1/4” 1/8” 3mm TB745 19.0mm 6mm 6mm
All bearings are available TB312 7.0mm 3mm 3mm TB908 19.0mm 8mm 6mm
as spare parts. In many TB316 8.0mm 3mm 3mm TB740 3/4" 3mm 7mm
TB315 8.0mm 3mm 4mm TB748 3/4" 1/4" 7mm
cases the bearing part TB208 8.0mm 4mm 4mm TB575 3/4" 1/2" 5mm
number is detailed along TB320 9.0mm 3mm 4mm TB750 20.0mm 3mm 6mm
TB209 9.0mm 4mm 4mm TB760 20.0mm 1/4” 6mm
with the cutter details. If
TB375 3/8" 1/8" 4mm TB909 20.0mm 9mm 6mm
not, then check the TB380 3/8" 3/16" 3mm TB940 21.0mm 12mm 5mm
outside diameter “A” and TB385 3/8” 1/4” 3.2mm TB850 22.0mm 3mm 6mm
TB394 10.0mm 3mm 4mm TB902 22.0mm 4mm 7mm
bore diameter “B” and TB210 10.0mm 4mm 4mm TB870 22.0mm 1/4" 6mm
select the bearing from TB420 10.0mm 6mm 3mm TB910 22.0mm 8mm 7mm
TB450 11.0mm 3mm 5mm TB840 22.0mm 10mm 6mm
these tables.
TB211 11.0mm 4mm 4mm TB904 24.0mm 3mm 7mm
TB410 11.0mm 5mm 5mm TB880 24.0mm 1/4" 7mm
TB451 12.0mm 3mm 4mm TB912 24.0mm 8mm 8mm
TB212 12.0mm 4mm 4mm TB875 24.0mm 9mm 7mm
TB645 12.0mm 8mm 3.5mm TB960 24.0mm 12mm 6mm
TB501 1/2" 3mm 5mm TB1023 24.0mm 15mm 7mm
TB500 1/2" 3/16" 5mm TB885 26.0mm 3mm 8mm
TB504 1/2" 1/4" 5mm TB890 26.0mm 1/4" 5mm
TB452 13.0mm 3mm 5mm TB913 26.0mm 8mm 7mm
TB213 13.0mm 4mm 4mm TB920 26.0mm 10mm 8mm
TB411 13.0mm 5mm 5mm TB970 26.0mm 12mm 5mm
TB412 13.0mm 6mm 5mm TB965 26.0mm 17mm 5mm
TB453 14.0mm 3mm 5mm TB895 28.0mm 1/4” 8mm
TB322 14.0mm 4mm 5mm TB915 28.0mm 8mm 9mm
TB325 14.0mm 5mm 5mm TB980 28.0mm 12mm 8mm
TB454 15.0mm 3mm 5mm TB975 28.5mm 1/2” 8mm
TB413 15.0mm 4mm 5mm TB900 30.0mm 1/4” 7mm
TB414 15.0mm 6mm 5mm TB917 30.0mm 8mm 7mm
TB620 5/8" 3mm 5mm TB1020 30.0mm 10mm 9mm
TB625 5/8" 1/4" 5mm TB990 30.0mm 12mm 7mm
TB216 16.0mm 4mm 5mm TB995 30.0mm 17mm 7mm
TB655 16.0mm 8mm 5mm TB1024 30.0mm 17mm 7mm
TB670 17.0mm 3mm 6mm TB1022 32.0mm 1/4" 10mm
TB675 17.0mm 4mm 6mm TB1021 32.0mm 12mm 10mm
TB665 17.0mm 6mm 6mm TB1025 35.0mm 17mm 10mm
TB680 18.0mm 3mm 4mm TB1026 40.0mm 17mm 12mm

RULE JOINT CUTTER COMBINATIONS

A common requirement in furniture making is the production Cutters Timber thickness
of rule joints. To produce this type of joint it is necessary to Core box Ovolo recommended maximum
use an ovolo/round over cutter for the table and a core box T406.4 T1327 7 10
cutter for the leaf. For the joint to work correctly, it is
important for the centre line of the radius to be in line with the T409.5 T1328 9 12
bottom of the table top and the hinge point. The round over T412.7 T1332
on the table top should be cut first, then the leaf should be T413½ T1333½ 12 16
cut, using the core box cutter with a fence to control the cut T416 T1334
depth. It is best to test this with some scrap timber of the T417½ T1335½ 13 16
same thickness until a satisfactory fit is achieved. The table
on the right details the cutter pairs required to produce joints T419 T1336 15 19
T420½ T1337½
along with the recommended and maximum timber thickness
they will cut. Please note that the maximum thickness will T425 T1338 17 23
produce a joint with a large quirk dimension (X) which may T425.4½ T1339½
look out of proportion. T432½ T1341½ 21 25
N.B. Ovolo cutters need a round over or zero quirk bearing T438½ T1342½ 24 28
for this operation. See notes on page 23.
T450½ T1344½ 31 35
Core box cutters see page 25, Ovolo cutters see page 23.
