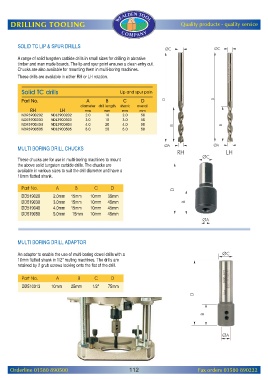

Page 114 - Router Catalogue 2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

SOLID TC LIP & SPUR DRILLS

A range of solid tungsten carbide drills in small sizes for drilling in abrasive
timber and man made boards. The lip and spur point ensures a clean entry cut.
Chucks are also available for mounting them in multi-boring machines.
These drills are available in either RH or LH rotation.

Solid TC drills Lip and spur poin
Part No. A B C D
diameter drill length shank overall
RH LH mm mm mm mm
NDR3900202 NDL3900202 2.0 18 2.0 50
NDR3900303 NDL3900303 3.0 18 3.0 50
NDR3900404 NDL3900404 4.0 20 4.0 50
NDR3900505 NDL3900505 5.0 25 5.0 50

MULTI BORING DRILL CHUCKS

These chucks are for use in multi-boring machines to mount
the above solid tungsten carbide drills. The chucks are
available in various sizes to suit the drill diameter and have a
10mm flatted shank.

Part No. A B C D
DD519020 2.0mm 15mm 10mm 39mm
DD519030 3.0mm 15mm 10mm 45mm
DD519040 4.0mm 15mm 10mm 45mm
DD519050 5.0mm 15mm 10mm 45mm

MULTI BORING DRILL ADAPTOR

An adaptor to enable the use of multi-boring dowel drills with a
10mm flatted shank in 1/2" routing machines. The drills are
retained by 2 grub screws locking onto the flat of the drill.

Part No. A B C D
DD510013 10mm 25mm 1/2" 75mm
