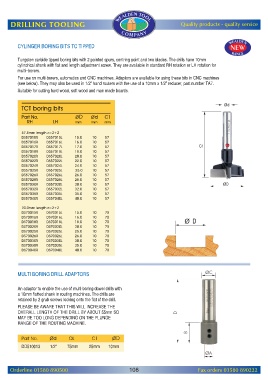

CYLINGER BORING BITS TC TIPPED

Tungsten carbide tipped boring bits with 2 pointed spurs, centring point and two blades. The drills have 10mm
cylindrical shank with flat and length adjustment screw. They are available in standard RH rotation or LH rotation for
multi–borers.
For use on multi-borers, automatics and CNC machines. Adaptors are available for using these bits in CNC machines
(see below). They may also be used in 1/2" hand routers with the use of a 10mm x 1/2" reducer, part number TA7.
Suitable for cutting hard wood, soft wood and man made boards.

TCT boring bits

Part No. øD ød C1
RH LH mm mm mm

57.5mm length z=2+2
DS57015R DS57015L 15.0 10 57
DS57016R DS57016L 16.0 10 57
DS57017R DS57017L 17.0 10 57
DS57018R DS57018L 18.0 10 57
DS57020R DS57020L 20.0 10 57
DS57022R DS57022L 22.0 10 57
DS57024R DS57024L 24.0 10 57
DS57025R DS57025L 25.0 10 57
DS57026R DS57026L 26.0 10 57
DS57028R DS57028L 28.0 10 57
DS57030R DS57030L 30.0 10 57
DS57032R DS57032L 32.0 10 57
DS57035R DS57035L 35.0 10 57
DS57040R DS57040L 40.0 10 57
70.0mm length z=2+2
DS70015R DS70015L 15.0 10 70
DS70016R DS70016L 16.0 10 70
DS70018R DS70018L 18.0 10 70
DS70020R DS70020L 20.0 10 70
DS70025R DS70025L 25.0 10 70
DS70026R DS70026L 26.0 10 70
DS70030R DS70030L 30.0 10 70
DS70035R DS70035L 35.0 10 70
DS70040R DS70040L 40.0 10 70

MULTI BORING DRILL ADAPTORS

An adaptor to enable the use of multi-boring dowel drills with
a 10mm flatted shank in routing machines. The drills are
retained by 2 grub screws locking onto the flat of the drill.
PLEASE BE AWARE THAT THIS WILL INCREASE THE
OVERALL LENGTH OF THE DRILL BY ABOUT 55mm SO
MAY BE TOO LONG DEPENDING ON THE PLUNGE
RANGE OF THE ROUTING MACHINE.

Part No. ød OL C1 øD

DD510013 1/2" 75mm 25mm 10mm
