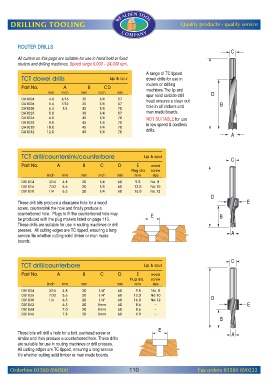

Page 112 - Router Catalogue 2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

ROUTER DRILLS

All cutters on this page are suitable for use in hand held or fixed
routers and drilling machines. Speed range 6,000 – 24,000 rpm.

A range of TC tipped
TCT dowel drills Lip & spur dowel drills for use in
routers or drilling
Part No. A B CD
mm inch mm inch mm machines.The lip and
spur solid carbide drill
DA1004 4.8 3/16 35 1/4 57 head ensures a clean cut
DA1006 5.6 7/32 35 1/4 57 hole in all timbers and
DA1008 6.3 1/4 45 1/4 70
man made boards.
DA1025 5.0 35 1/4 57
DA1026 6.0 45 1/4 70 NOT SUITABLE for use
DA1028 8.0 45 1/4 70
in low speed & cordless
DA1030 10.0 45 1/4 70
DA1032 12.0 45 1/4 70 drills.

TCT drill/countersink/counterbore Lip & spur
Part No. A B C D E wood
Plug dia. screw
inch mm mm inch mm mm size
DB1014 3/16 4.8 20 1/4 60 9.5 No. 8
DB1016 7/32 5.6 20 1/4 60 12.0 No.10
DB1018 1/4 6.3 20 1/4 60 16.0 No.12

These drill bits produce a clearance hole for a wood
screw, countersink the hole and finally produce a
counterbored hole. Plugs to fit the counterbored hole may
be produced with the plug makers listed on page 113.
These drills are suitable for use in routing machines or drill
presses. All cutting edges are TC tipped, ensuring a long
service life whether cutting solid timber or man made
boards.

TCT drill/counterbore Lip & spur
Part No. A B C D E wood
Plug dia. screw
inch mm mm mm mm size
DB1034 3/16 4.8 20 1/4” 60 9.5 No. 8
DB1036 7/32 5.6 20 1/4” 60 12.0 No.10
DB1038 1/4 6.3 20 1/4” 60 16.0 No.12
DB1042 6.3 20 8mm 60 8.6 –
DB1044 7.0 20 8mm 60 8.6 –
DB1046 7.8 20 8mm 60 9.9 –

These bits will drill a hole for a bolt, panhead screw or
similar and then produce a counterbored hole. These drills
are suitable for use in routing machines or drill presses.
All cutting edges are TC tipped, ensuring a long service
life whether cutting solid timber or man made boards.

Orderline 01580 890500 110 Fax orders 01580 890222
