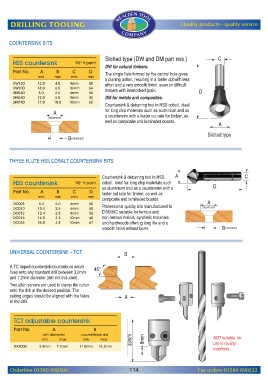

Page 116 - Router Catalogue 2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

COUNTERSINK BITS

Slotted type (DW and DM part nos.)
HSS countersinkcountersink 90 V point V point
HSS
90
DW for natural timbers.
Part
Part No.No. A A B B C C D D
The single flute formed by the central hole gives
mm mm mm mm
mm
mm
mm
mm
a planing action, resulting in a faster cut with less
DW130 12.0 4.0 8mm 50 effort and a very smooth finish, even on difficult
DW200 18.0 6.0 10mm 64 timbers with interlocked grain.
DM540 8.0 2.0 6mm 45
DM640 12.0 5.0 8mm 45 DM for metals and composites.
DM740 17.0 10.0 10mm 65
Countersink & deburring tool in HSS cobalt. Ideal
for long chip materials such as aluminium and as
a countersink with a faster cut rate for timber, as
well as composite and laminated boards.
Slotted type

THREE FLUTE HSS COBALT COUNTERSINK BITS

Countersink & deburring tool in HSS
HSS countersink 90 V point cobalt. Ideal for long chip materials such
HSS countersink
90 V point
as aluminium and as a countersink with a
Part No. A A B B C C D D faster cut rate for timber, as well as
Part No.
mm mm mm mm
mm
mm
mm
mm
composite and laminated boards.
DC008 8.3 2.0 6mm 50
DC010 10.4 2.5 6mm 50 Professional quality bits manufactured to
DC012 12.4 2.8 8mm 56 DIN335C suitable for ferrous and
DC016 16.5 3.2 10mm 60 non-ferrous metals, synthetic materials
DC025 25.0 3.8 10mm 67 and hardwoods offering long life and a
smooth finish without burrs.
UNIVERSAL COUNTERSINK – TCT

A TC tipped countersink/counterbore which
fixes onto any standard drill between 3.0mm
and 7.2mm diameter (drill not included).
Two allen screws are used to clamp the cutter
onto the drill at the desired position. The
cutting edges should be aligned with the flutes
of the drill.

TCT adjustable countersink

Part No. A B
drill diameter counterbore dia
min max min max NOT suitable for
use in routing
DA2000 3.0mm 7.2mm 11.0mm 15.3mm
machines.

Orderline 01580 890500 114 Fax orders 01580 890222
