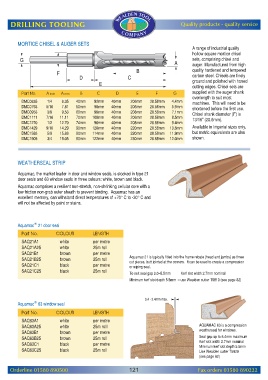

Page 123 - Router Catalogue 2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

MORTICE CHISEL & AUGER SETS
A range of industrial quality
hollow square mortice chisel
sets, comprising chisel and
auger. Manufactured from high
quality hardened and tempered
carbon steel. Chisels are finely
ground and polished with honed
cutting edges. Chisel sets are
Part No. A inch A mm B C D E F G supplied with the auger shank
overlength to suit most
DMC0635 1/4 6.35 40mm 92mm 40mm 206mm 20.58mm 4.4mm machines. This will need to be
DMC0793 5/16 7.81 50mm 98mm 40mm 206mm 20.58mm 5.9mm shortened before the first use.
DMC0953 3/8 9.53 60mm 98mm 40mm 208mm 20.58mm 7.1mm
Chisel shank diameter (F) is
DMC1111 7/16 11.11 70mm 100mm 40mm 206mm 20.58mm 8.5mm 13/16" (20.6mm).
DMC1270 1/2 12.70 74mm 96mm 40mm 208mm 20.58mm 9.4mm
DMC1429 9/16 14.29 90mm 126mm 40mm 220mm 20.58mm 10.6mm Available in Imperial sizes only,
DMC1588 5/8 15.88 90mm 114mm 40mm 220mm 20.58mm 11.9mm but metric equivalents are also
DMC1905 3/4 19.05 90mm 122mm 40mm 230mm 20.58mm 12.0mm shown.

WEATHERSEAL STRIP

Aquamac, the market leader in door and window seals, is stocked in type 21
door seals and 63 window seals in three colours: white, brown and black.
Aquamac comprises a resilient non-stretch, non-shrinking cellular core with a
low friction non-grab outer sheath to prevent binding. Aquamac has an
excellent memory, can withstand direct temperatures of +70 Cto-30 C and
will not be affected by paint or stains.

Aquamac 21 door seal
Part No. COLOUR LENGTH
SAQ21A1 white per metre
SAQ21A25 white 25m roll
SAQ21B1 brown per metre
Aquamac 21 is typically fitted into the frame rebate (head and jambs) as three
SAQ21B25 brown 25m roll
cut pieces, butt jointed at the corners. It can be used to create a compression
SAQ21C1 black per metre or wiping seal.
SAQ21C25 black 25m roll
To suit seal gap 3.0–5.5mm Kerf slot width 2.7mm nominal
Minimum kerf slot depth 5.5mm – use Wealden cutter T5810 (see page 82)

Aquamac 63 window seal
Part No. COLOUR LENGTH
SAQ63A1 white per metre
SAQ63A25 white 25m rolll AQUAMAC 63 is a compression
weatherseal for windows.
SAQ63B1 brown per metre
SAQ63B25 brown 25m roll Seal gap up to 5.4mm maximum
Kerf slot width 2.7mm nominal
SAQ63C1 black per metre
Minimum kerf slot depth 5.5mm
SAQ63C25 black 25m roll Use Wealden cutter T5820
(see page 82)

Orderline 01580 890500 121 Fax orders 01580 890222
