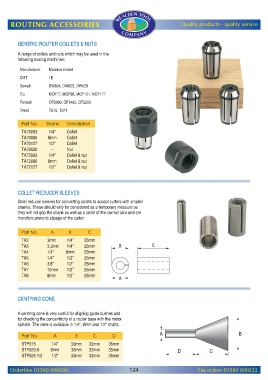

Page 126 - Router Catalogue 2021

WEALDEN TOOL
ROUTING ACCESSORIES Quality products - quality service
COM PAN Y

GENERIC ROUTER COLLETS & NUTS
A range of collets and nuts which may be used in the
following routing machines:

Manufacturer Machine model
CMT 1E
Dewalt DW624, DW625, DW629

Elu MOF77, MOF98, MOF131, MOF177
Festool OF2000, OF1400, OF2200
Trend TS10, TS11

Part No. Shank Description
TA70063 1/4" Collet
TA70080 8mm Collet
TA70127 1/2" Collet
TA70020 – Nut
TA72063 1/4" Collet & nut
TA72080 8mm Collet & nut
TA72127 1/2" Collet & nut

COLLET REDUCER SLEEVES
Steel reducer sleeves for converting collets to accept cutters with smaller
shanks. These should only be considered as a temporary measure as
they will not grip the shank as well as a collet of the correct size and are
therefore prone to slipage of the cutter.

Part No. A B C
TA2 3mm 1/4” 25mm
TA3 3.2mm 1/4” 25mm
TA4 1/4” 8mm 25mm
TA5 1/4” 1/2” 25mm
TA6 3/8” 1/2” 25mm
TA7 10mm 1/2” 25mm
TA8 8mm 1/2” 25mm

CENTRING CONE

A centring cone is very useful for aligning guide bushes and
for checking the concentricity of a router base with the motor
spindle. The cone is available in 1/4", 8mm and 1/2" shafts.

Part No. A B C D

STP015 1/4" 32mm 32mm 35mm
STP020-8 8mm 32mm 32mm 35mm
STP025 1/2 1/2" 32mm 32mm 35mm

Orderline 01580 890500 124 Fax orders 01580 890222
