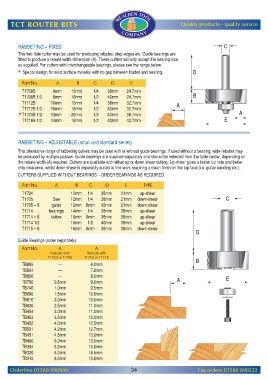

Page 36 - Router Catalogue 2021
P. 36
WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y
RABBETING – FIXED
This two flute cutter may be used for producing rebates, step edges etc. Guide bearings are
fitted to produce a rebate width dimension (A). These cutters will only accept the bearing size
as supplied. For cutters with interchangeable bearings, please see the range below.
* Special design for solid surface material with no gap between blades and bearing.
Part No. A B C D E
T1708B 6mm 13mm 1/4 38mm 24.7mm
T1708B 1/2 6mm 16mm 1/2 40mm 24.7mm
T1712B 10mm 13mm 1/4 38mm 32.7mm
T1712B 1/2 10mm 16mm 1/2 40mm 32.7mm
* T1723B 1/2 13mm 20mm 1/2 40mm 38.7mm
T1716B 1/2 14mm 18mm 1/2 40mm 40.7mm
RABBETING – ADJUSTABLE (small and standard series)
This alternative range of rabbeting cutters may be used with or without guide bearings. If used without a bearing, wide rebates may
be produced by multiple passes. Guide bearings are supplied separately and should be selected from the table below, depending on
the rebate width (A) required. Cutters are available with either up or down shear cutting. Up-shear gives a faster cut rate and better
chip clearance, whilst down-shear is especially suited to fine work requiring a clean finish on the top face (i.e. guitar banding etc.).
CUTTERS SUPPLIED WITHOUT BEARINGS – ORDER BEARINGS AS REQUIRED.
Part No. A B C D E TYPE
T1704 12mm 1/4 38mm 21mm up-shear
T1705 See 12mm 1/4 38mm 21mm down-shear
T1705 – 8 guide 12mm 8mm 38mm 21mm down-shear
T1714 bearings 14mm 1/4 38mm 38mm up-shear
T1714 – 8 below 16mm 8mm 38mm 38mm up-shear
T1714 1/2 18mm 1/2 40mm 38mm up-shear
T1715 – 8 16mm 8mm 38mm 38mm down-shear
Guide Bearings (order separately)
Part No. A A
Rebate with Rebate with
T1704 or T1705 T1714 or T1715
TB885 — 6.0mm
TB904 — 7.0mm
TB850 — 8.0mm
TB750 0.5mm 9.0mm
TB740 1.0mm 9.5mm
TB680 1.5mm 10.0mm
TB670 2.0mm 10.5mm
TB620 2.5mm 11.0mm
TB454 3.0mm 11.5mm
TB453 3.5mm 12.0mm
TB452 4.0mm 12.5mm
TB501 4.2mm 12.7mm
TB451 4.5mm 13.0mm
TB450 5.0mm 13.5mm
TB394 5.5mm 14.0mm
TB320 6.0mm 14.5mm
TB315 6.5mm 15.0mm
Orderline 01580 890500 34 Fax orders 01580 890222
