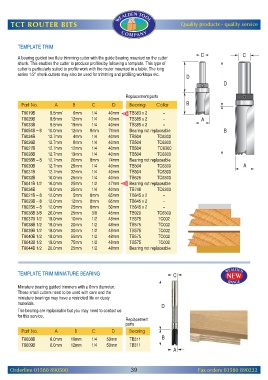

Page 41 - Router Catalogue 2021
P. 41
WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y
TEMPLATE TRIM
A bearing guided two flute trimming cutter with the guide bearing mounted on the cutter
shank. This enables the cutter to produce profiles by following a template. This type of
cutter is particularly suited to profile work with the router mounted in a table. The long
series 1/2" shank cutters may also be used for trimming and profiling worktops etc.
Replacement parts
Part No. A B C D Bearing Collar
T8019B 9.5mm` 6mm 1/4 40mm TB383 x 2 –
T8029B 9.5mm 12mm 1/4 40mm TB385 x 2 –
T8033B 9.5mm 19mm 1/4 40mm TB385 x 2 –
T8054B – 8 10.0mm 12mm 8mm 74mm Bearing not replaceable
T8024B 12.7mm 4mm 1/4 40mm TB504 TC6300
T8026B 12.7mm 8mm 1/4 40mm TB504 TC6300
T8027B 12.7mm 12mm 1/4 40mm TB504 TC6300
T8028B 12.7mm 19mm 1/4 40mm TB504 TC6300
T8056B – 8 12.7mm 20mm 8mm 74mm Bearing not replaceable
T8030B 12.7mm 25mm 1/4 40mm TB504 TC6300
T8031B 12.7mm 32mm 1/4 40mm TB504 TC6300
T8032B 16.0mm 25mm 1/4 40mm TB625 TC6300
T8041B 1/2 16.0mm 25mm 1/2 47mm Bearing not replaceable
T8034B 19.0mm 25mm 1/4 40mm TB748 TC6300
T8021B – 8 12.0mm 5mm 8mm 65mm TB645 x 2 –
T8023B – 8 12.0mm 12mm 8mm 65mm TB645 x 2 –
T8025B – 8 12.0mm 25mm 8mm 50mm TB645 x 2 –
T8036B 3/8 26.0mm 25mm 3/8 45mm TB920 TC6500
T8037B 1/2 19.0mm 10mm 1/2 48mm TB575 TC002
T8038B 1/2 19.0mm 20mm 1/2 48mm TB575 TC002
T8039B 1/2 19.0mm 30mm 1/2 48mm TB575 TC002
T8040B 1/2 19.0mm 55mm 1/2 48mm TB575 TC002
T8042B 1/2 19.0mm 75mm 1/2 48mm TB575 TC002
T8044B 1/2 20.0mm 25mm 1/2 48mm Bearing not replaceable
TEMPLATE TRIM MINIATURE BEARING
Miniature bearing guided trimmers with a 6mm diameter.
These small cutters need to be used with care and the
miniature bearings may have a restricted life on dusty
materials.
The bearing are replaceable but you may need to contact us
for this service.
Replacement
parts
Part No. A B C D Bearing
T8008B 6.0mm 10mm 1/4 50mm TB311
T8009B 6.0mm 12mm 1/4 50mm TB311
Orderline 01580 890500 39 Fax orders 01580 890222
