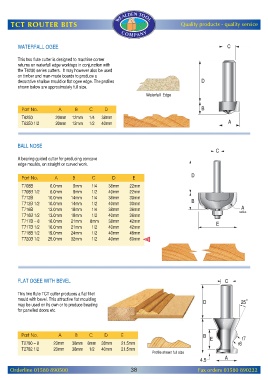

Page 40 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

WATERFALL OGEE

This two flute cutter is designed to machine corner
returns on waterfall edge worktops in conjunction with
the T6200 series cutters. It may however also be used
on timber and man-made boards to produce a
decorative shallow mould or flat ogee edge. The profiles
shown below are approximately full size.

Part No. A B C D
T6250 20mm 12mm 1/4 38mm
T6250 1/2 20mm 12mm 1/2 40mm

BALL NOSE

A bearing guided cutter for producing concave
edge moulds, on straight or curved work.

Part No. A B C D E
T708B 6.0mm 9mm 1/4 38mm 22mm
T708B 1/2 6.0mm 9mm 1/2 40mm 22mm
T712B 10.0mm 14mm 1/4 38mm 30mm
T712B 1/2 10.0mm 14mm 1/2 40mm 30mm
T716B 13.0mm 18mm 1/4 38mm 36mm
T716B 1/2 13.0mm 18mm 1/2 40mm 36mm
T717B – 8 16.0mm 21mm 8mm 38mm 42mm
T717B 1/2 16.0mm 21mm 1/2 40mm 42mm
T718B 1/2 19.0mm 24mm 1/2 40mm 48mm
T720B 1/2 25.0mm 32mm 1/2 40mm 60mm

FLAT OGEE WITH BEVEL

This two flute TCT cutter produces a flat fillet
mould with bevel. This attractive flat moulding
may be used on its own or to produce beading
for panelled doors etc.

Part No. A B C D E
T2780 – 8 23mm 38mm 8mm 38mm 21.5mm
T2782 1/2 23mm 38mm 1/2 40mm 21.5mm
Profile shown full size

Orderline 01580 890500 38 Fax orders 01580 890222
