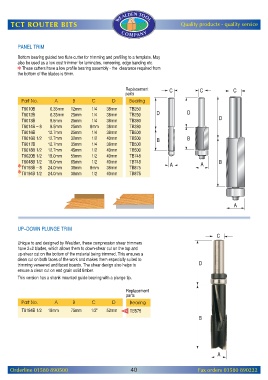

Page 42 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

PANEL TRIM

Bottom bearing guided two flute cutter for trimming and profiling to a template. May
also be used as a low cost trimmer for laminates, veneering, edge banding etc.
These cutters have a low profile bearing assembly - the clearance required from
the bottom of the blades is 9mm.

Replacement
parts
Part No. A B C D Bearing

T8010B 6.35mm 12mm 1/4 38mm TB250
T8012B 6.35mm 25mm 1/4 38mm TB250
T8013B 9.5mm 25mm 1/4 38mm TB380
T8014B – 8 9.5mm 25mm 8mm 38mm TB380
T8016B 12.7mm 25mm 1/4 38mm TB500
T8016B 1/2 12.7mm 32mm 1/2 40mm TB500
T8017B 12.7mm 35mm 1/4 38mm TB500
T8018B 1/2 12.7mm 45mm 1/2 40mm TB500
T8020B 1/2 19.0mm 55mm 1/2 40mm TB748
T8048B 1/2 19.0mm 65mm 1/2 40mm TB748
T8193B – 8 24.0mm 30mm 8mm 38mm TB875
T8194B 1/2 24.0mm 30mm 1/2 40mm TB875

UP–DOWN PLUNGE TRIM

Unique to and designed by Wealden, these compression shear trimmers
have 2+2 blades, which allows them to down-shear cut on the top and
up-shear cut on the bottom of the material being trimmed. This ensures a
clean cut on both faces of the work and makes them especially suited to
trimming veneered and faced boards. The shear design also helps to
ensure a clean cut on end grain solid timber.
This version has a shank mounted guide bearing with a plunge tip.

Replacement
parts
Part No. A B C D Bearing
T8184B 1/2 19mm 75mm 1/2" 52mm TB575

Orderline 01580 890500 40 Fax orders 01580 890222
