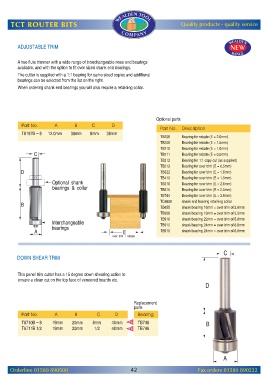

Page 44 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ADJUSTABLE TRIM

A two flute trimmer with a wide range of interchangeable nose end bearings
available, and with the option to fit over sized shank end bearings.
The cutter is supplied with a 1:1 bearing for same sized copies and additional
bearings can be selected from the list on the right.
When ordering shank end bearings you will also require a retaining collar.

Optional parts
Part No. A B C D
Part No. Description
T8187B – 8 12.0mm 30mm 8mm 38mm
TB208 Bearing for rebate (E = 2.0mm)
TB209 Bearing for rebate (E = 1.5mm)
TB210 Bearing for rebate (E = 1.0mm)
TB211 Bearing for rebate (E = 0.5mm)
TB212 Bearing for 1:1 copy cut (as supplied)
TB213 Bearing for over trim (E = 0.5mm)
TB322 Bearing for over trim (E = 1.0mm)
TB413 Bearing for over trim (E = 1.5mm)
TB216 Bearing for over trim (E = 2.0mm)
TB675 Bearing for over trim (E = 2.5mm)
TB744 Bearing for over trim (E = 3.5mm)
TC6800 shank end bearing retaining collar
TB655 shank bearing 16mm = over trim of 2.0mm
TB908 shank bearing 19mm = over trim of 3.5mm
TB910 shank bearing 22mm = over trim of 5.0mm
TB912 shank bearing 24mm = over trim of 6.0mm
TB913 shank bearing 24mm = over trim of 6.0mm

DOWN SHEAR TRIM

This panel trim cutter has a 15 degree down shearing action to
ensure a clean cut on the top face of veneered boards etc.

Replacement
parts
Part No. A B C D Bearing
T8710B – 8 19mm 20mm 8mm 40mm TB748
T8711B 1/2 19mm 20mm 1/2 40mm TB748
