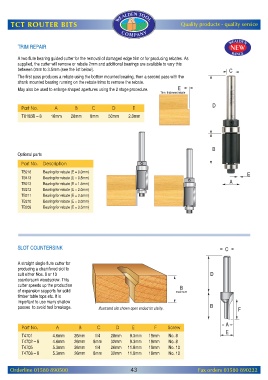

Page 45 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

TRIM REPAIR

A two flute bearing guided cutter for the removal of damaged edge trim or for producing rebates. As
supplied, the cutter will remove or rebate 2mm and additional bearings are available to vary this
between 0mm to 3.5mm (see the list below).
The first pass produces a rebate using the bottom mounted bearing, then a second pass with the
shank mounted bearing running on the rebate trims to remove the rebate.
May also be used to enlarge shaped apertures using the 2 stage procedure.

Part No. A B C D E
T8185B – 8 16mm 26mm 8mm 50mm 2.0mm

Optional parts

Part No. Description
TB216 Bearing for rebate (E = 0.0mm)
TB413 Bearing for rebate (E = 0.5mm)
TB213 Bearing for rebate (E = 1.5mm)
TB212 Bearing for rebate (E = 2.0mm)
TB211 Bearing for rebate (E = 2.5mm)
TB210 Bearing for rebate (E = 3.0mm)
TB209 Bearing for rebate (E = 3.5mm)

SLOT COUNTERSINK

A straight single flute cutter for
producing a chamfered slot to
suit either Nos. 8 or 10
countersunk woodscrew. This
cutter speeds up the production
of expansion supports for solid
timber table tops etc. It is
important to use many shallow
passes to avoid tool breakage. Illustrated slot shown open ended for clarity.

Part No. A B C D E F Screw
T4701 4.6mm 26mm 1/4 28mm 9.3mm 19mm No. 8
T4702 – 8 4.6mm 26mm 8mm 32mm 9.3mm 19mm No. 8
T4705 5.3mm 26mm 1/4 26mm 11.8mm 19mm No. 10
T4706 – 8 5.3mm 26mm 8mm 32mm 11.8mm 19mm No. 10

Orderline 01580 890500 43 Fax orders 01580 890222
