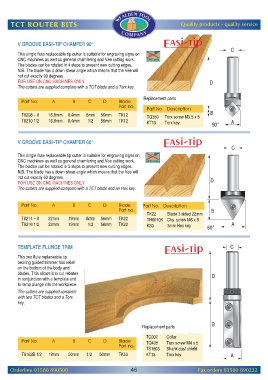

Page 48 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

V GROOVE EASI–TIP CHAMFER 90
This single flute replaceable tip cutter is suitable for engraving signs on
CNC machines as well as general chamfering and Vee cutting work.
The blades can be rotated in 4 steps to present new cutting edges.
N.B. The blade has a down shear angle which means that the Vee will
not cut exactly 90 degrees.
FOR USE ON CNC MACHINES ONLY
The cutters are supplied complete with a TCT blade and a Torx key.

Replacement parts
Part No. A B C D Blade
Part no.
Part No. Description
T8208 – 8 16.8mm 8.4mm 8mm 56mm TK12
TQ350 Torx screw M3.5 x 5
T8210 1/2 16.8mm 8.4mm 1/2 56mm TK12
KT15 Torx key

V GROOVE EASI–TIP CHAMFER 60

This single flute replaceable tip cutter is suitable for engraving signs on
CNC machines as well as general chamfering and Vee cutting work.
The blades can be rotated in 3 steps to present new cutting edges.
N.B. The blade has a down shear angle which means that the Vee will
not cut exactly 60 degrees.
FOR USE ON CNC MACHINES ONLY
The cutters are supplied complete with a TCT blade and an Hex key.

Part No. A B C D Blade Part No. Description
Part no.
TK22 Blade 3 sided 22mm
T8214 – 8 22mm 19mm 8mm 56mm TK22 TH6010K Cks. screw M6 x 8
T8216 1/2 22mm 19mm 1/2 56mm TK22 K30 3mm Hex key

TEMPLATE PLUNGE TRIM

This two flute replaceable tip
bearing guided trimmer has relief
on the bottom of the body and
blades. This allows it to cut rebates
in conjunction with a template and
to ramp plunge into the workpiece.
The cutters are supplied complete
with two TCT blades and a Torx
key.

Part No. Description
Replacement parts
TB575 Shank bearing
TC002 Collar
Part No. A B C D Blade TQ405 Torx screw M4 x 5
Part no.
TS1603 Shank dust shield
T8162B 1/2 19mm 50mm 1/2 50mm TK53 KT15 Torx key

Orderline 01580 890500 46 Fax orders 01580 890222
