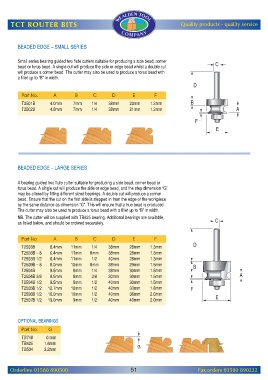

Page 53 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

BEADED EDGE – SMALL SERIES

Small series bearing guided two flute cutters suitable for producing a side bead, corner
bead or torus bead. A single cut will produce the side or edge bead whilst a double cut
will produce a corner bead. The cutter may also be used to produce a torus bead with
a fillet up to “B” in width.

Part No. A B C D E F
T2501B 4.0mm 7mm 1/4 38mm 20mm 1.3mm
T2502B 4.8mm 7mm 1/4 38mm 21mm 1.3mm

BEADED EDGE – LARGE SERIES

A bearing guided two flute cutter suitable for producing a side bead, corner bead or
torus bead. A single cut will produce the side or edge bead, and the step dimension “G”
may be altered by fitting different sized bearings. A double cut will produce a corner
bead. Ensure that the cut on the first side is stepped in from the edge of the workpiece
by the same distance as dimension “G”. This will ensure that a true bead is produced.
The cutter may also be used to produce a torus bead with a fillet up to “B” in width.
NB. The cutter will be supplied with TB625 bearing. Additional bearings are available,
as listed below, and should be ordered separately.

Part No. A B C D E F
T2503B 6.4mm 11mm 1/4 38mm 28mm 1.3mm
T2503B – 8 6.4mm 11mm 8mm 38mm 28mm 1.3mm
T2503B 1/2 6.4mm 11mm 1/2 40mm 28mm 1.3mm
T2509B – 8 8.0mm 10mm 8mm 38mm 29mm 1.5mm
T2504B 9.5mm 8mm 1/4 38mm 30mm 1.5mm
T2504B 3/8 9.5mm 8mm 3/8 30mm 30mm 1.5mm
T2504B 1/2 9.5mm 8mm 1/2 40mm 30mm 1.5mm
T2505B 1/2 12.7mm 10mm 1/2 40mm 33mm 1.8mm
T2506B 1/2 16.0mm 10mm 1/2 40mm 36mm 2.0mm
T2507B 1/2 19.0mm 9mm 1/2 40mm 40mm 2.0mm

OPTIONAL BEARINGS

Part No. G
TB748 0 mm
TB625 1.6mm
TB504 3.2mm

Orderline 01580 890500 51 Fax orders 01580 890222
