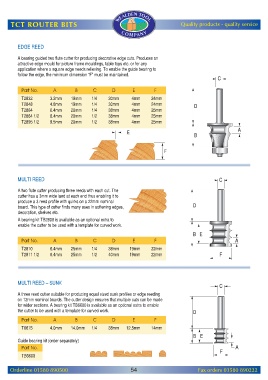

Page 56 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

EDGE REED

A bearing guided two flute cutter for producing decorative edge cuts. Produces an
attractive edge mould for picture frame mouldings, table tops etc. or for any
application where a square edge needs relieving. To enable the guide bearing to
follow the edge, the minimum dimension “F” must be maintained.

Part No. A B C D E F

T2832 3.2mm 19mm 1/4 30mm 4mm 24mm
T2848 4.8mm 19mm 1/4 30mm 4mm 24mm
T2864 6.4mm 20mm 1/4 38mm 4mm 25mm
T2864 1/2 6.4mm 20mm 1/2 38mm 4mm 25mm
T2895 1/2 9.5mm 20mm 1/2 38mm 4mm 25mm

MULTI REED

A two flute cutter producing three reeds with each cut. The
cutter has a 3mm wide land at each end thus enabling it to
produce a 3 reed profile with quirks on a 22mm nominal
board. This type of cutter finds many uses in softening edges,
decoration, shelves etc.
A bearing kit TB2800 is available as an optional extra to
enable the cutter to be used with a template for curved work.

Part No. A B C D E F
T2810 6.4mm 25mm 1/4 38mm 19mm 22mm
T2811 1/2 6.4mm 25mm 1/2 40mm 19mm 22mm

MULTI REED – SUNK

A three reed cutter suitable for producing equal sized sunk profiles or edge reeding
on 12mm nominal boards. The cutter design ensures that multiple cuts can be made
for wider sections. A bearing kit TB6600 is available as an optional extra to enable
the cutter to be used with a template for curved work.
Part No. A B C D E F
T6675 4.0mm 14.0mm 1/4 38mm 12.5mm 14mm

Guide bearing kit (order separately)
Part No.
TB6600
