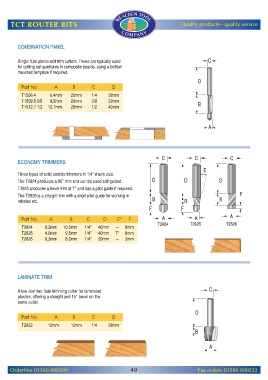

Page 51 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

COMBINATION PANEL

Single flute pierce and trim cutters. These are typically used
for cutting out apertures in composite boards, using a bottom
mounted template if required.

Part No. A B C D
T1506.4 6.4mm 20mm 1/4 38mm
T1509.5 3/8 9.5mm 20mm 3/8 33mm
T1512.7 1/2 12.7mm 26mm 1/2 40mm

ECONOMY TRIMMERS

Three types of solid carbide trimmers in 1/4” shank size.
The T2624 produces a 90° trim and can be used self guided.
T2625 produces a bevel trim at 7° and has a pilot guide if required.
The T2626 is a straight trim with a short pilot guide for working in
rebates etc.

Part No. A B C D E° F
T2624 6.3mm 10.0mm 1/4" 40mm – 8mm
T2625 4.0mm 9.5mm 1/4" 40mm 7° 8mm
T2626 6.3mm 8.0mm 1/4" 29mm – 3mm

LAMINATE TRIM

A low cost two flute trimming cutter for laminated
plastics, offering a straight and 15° bevel on the
same cutter.

Part No. A B C D

T2622 12mm 12mm 1/4 38mm
