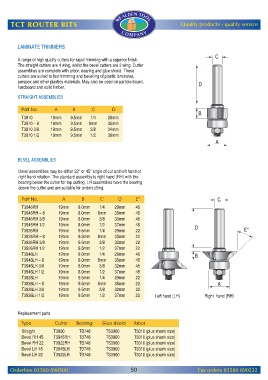

Page 52 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

LAMINATE TRIMMERS

A range of high quality cutters for rapid trimming with a superior finish.
The straight cutters are 4 wing, whilst the bevel cutters are 3 wing. Cutter
assemblies are complete with arbor, bearing and glue shield. These
cutters are suited to fast trimming and bevelling of plastic laminates,
perspex and other plastics materials. May also be used on particle board,
hardboard and solid timber.
STRAIGHT ASSEMBLIES

Part No. A B C D
T3910 19mm 9.5mm 1/4 28mm
T3910 – 8 19mm 9.5mm 8mm 35mm
T3910 3/8 19mm 9.5mm 3/8 34mm
T3910 1/2 19mm 9.5mm 1/2 38mm

BEVEL ASSEMBLIES

Bevel assemblies may be either 22° or 45° angle of cut and left hand or
right hand rotation. The standard assembly is right hand (RH) with the
bearing below the cutter for top cutting. LH assemblies have the bearing
above the cutter and are suitable for undercutting.

Part No. A B C D E°
T3946RH 19mm 8.0mm 1/4 29mm 45
T3946RH – 8 19mm 8.0mm 8mm 35mm 45
T3946RH 3/8 19mm 8.0mm 3/8 33mm 45
T3946RH 1/2 19mm 8.0mm 1/2 37mm 45
T3926RH 19mm 9.5mm 1/4 29mm 22
T3926RH – 8 19mm 9.5mm 8mm 35mm 22
T3926RH 3/8 19mm 9.5mm 3/8 32mm 22
T3926RH 1/2 19mm 9.5mm 1/2 37mm 22
T3946LH 19mm 8.0mm 1/4 26mm 45
T3946LH – 8 19mm 8.0mm 8mm 35mm 45
T3946LH 3/8 19mm 8.0mm 3/8 32mm 45
T3946LH 1/2 19mm 8.0mm 1/2 37mm 45
T3926LH 19mm 9.5mm 1/4 29mm 22
T3926LH – 8 19mm 9.5mm 8mm 35mm 22
T3926LH 3/8 19mm 9.5mm 3/8 32mm 22
T3926LH 1/2 19mm 9.5mm 1/2 37mm 22 Left hand (LH) Right hand (RH)

Replacement parts

Type Cutter Bearing Glue shield Arbor
Straight T3900 TB748 TS3900 T3010 (plus shank size)
Bevel RH 45 T3945RH TB748 TS3900 T3010 (plus shank size)
Bevel RH 22 T3922RH TB748 TS3900 T3010 (plus shank size)
Bevel LH 45 T3945LH TB748 TS3900 T3010 (plus shank size)
Bevel LH 22 T3922LH TB748 TS3900 T3010 (plus shank size)

Orderline 01580 890500 50 Fax orders 01580 890222
