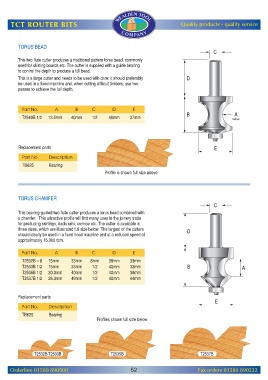

Page 54 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

TORUS BEAD

This two flute cutter produces a traditional pattern torus bead, commonly
used for skirting boards etc. The cutter is supplied with a guide bearing
to control the depth to produce a full bead.
This is a large cutter and needs to be used with care: it should preferably
be used in a fixed machine and, when cutting difficult timbers, use two
passes to achieve the full depth.

Part No. A B C D E
T2540B 1/2 13.5mm 40mm 1/2 40mm 37mm

Replacement parts

Part No. Description
TB625 Bearing
Profile is shown full size above

TORUS CHAMFER

This bearing-guided two flute cutter produces a torus bead combined with
a chamfer. This attractive profile will find many uses in the joinery trade
for producing skirtings, dado rails, cornice etc. The cutter is available in
three sizes, which are illustrated full size below. The largest of the cutters
should ideally be used in a fixed head machine and at a reduced speed of
approximately 15,000 rpm.

Part No. A B C D E
T2532B – 8 15mm 33mm 8mm 38mm 33mm
T2533B 1/2 15mm 33mm 1/2 40mm 33mm
T2535B 1/2 20.0mm 40mm 1/2 40mm 38mm
T2537B 1/2 26.0mm 49mm 1/2 40mm 44mm

Replacement parts
Part No. Description

TB625 Bearing
Profiles shown full size below
