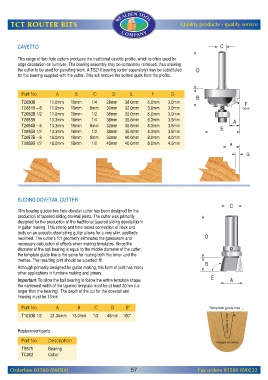

Page 59 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

CAVETTO

This range of two flute cutters produces the traditional cavetto profile, which is often used for
edge decoration on furniture. The bearing assembly may be completely removed, thus allowing
the cutter to be used for panelling work. A TB216 bearing (order separately) may be substituted
for the bearing supplied with the cutter. This will remove the bottom quirk from the profile.

Part No. A B C D E F G
T2680B 11.0mm 15mm 1/4 28mm 38.0mm 5.0mm 3.0mm
T2681B – 8 11.0mm 15mm 8mm 32mm 32.0mm 5.0mm 3.0mm
T2682B 1/2 11.0mm 15mm 1/2 38mm 32.0mm 5.0mm 3.0mm
T2683B 13.3mm 16mm 1/4 38mm 35.6mm 6.3mm 3.5mm
T2684B – 8 13.3mm 16mm 8mm 32mm 35.6mm 6.3mm 3.5mm
T2685B 1/2 13.3mm 16mm 1/2 38mm 35.6mm 6.3mm 3.5mm
T2687B – 8 16.0mm 18mm 8mm 32mm 40.0mm 8.0mm 4.0mm
T2688B 1/2 16.0mm 18mm 1/2 40mm 40.0mm 8.0mm 4.0mm

SLIDING DOVETAIL CUTTER

This bearing guided two flute dovetail cutter has been designed for the
production of tapered sliding dovetail joints. The cutter was primarily
designed for the production of the traditional tapered sliding dovetail joint
in guitar making. This strong and time tested connection of neck and
body on an acoustic steel string guitar allows for a very slim, aesthetic
neckheel. The cutter’s 1:1 geometry eliminates the guesswork and
necessary calculation of offsets when making templates. Since the
diameter of the ball bearing is equal to the middle diameter of the cutter,
the template guide line is the same for routing both the tenon and the
mortise. The resulting joint should be a perfect fit.
Although primarily designed for guitar making, this form of joint has many
other applications in furniture making and joinery.
Important: To allow the ball bearing to follow the entire template shape,
the narrowest width of the tapered template must be at least 20mm (i.e
larger than the bearing). The depth of the cut for the dovetail and
housing must be 13mm.

Part No. A B C D E°
Template for tenon
T1030B 1/2 21.34mm 13.0mm 1/2 46mm 100°

Replacement parts

Part No. Description
Template for mortise
TB575 Bearing
TC002 Collar
