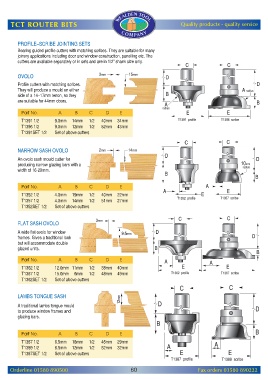

Page 62 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

PROFILE–SCRIBE JOINTING SETS
Bearing guided profile cutters with matching scribes. They are suitable for many
joinery applications including door and window construction, panelling etc. The
cutters are available separately or in sets and are in 1/2” shank size only.

OVOLO

Profile cutters with matching scribes.
They will produce a mould on either
side of a 14–17mm tenon, so they
are suitable for 44mm doors.

Part No. A B C D E
T1391 1/2 9.0mm 14mm 1/2 40mm 34mm
T1396 1/2 9.0mm 12mm 1/2 52mm 43mm
T1391SET 1/2 Set of above cutters

NARROW SASH OVOLO

An ovolo sash mould cutter for
producing narrow glazing bars with a
width of 16-20mm.

Part No. A B C D E
T1352 1/2 4.0mm 19mm 1/2 40mm 22mm
T1357 1/2 4.0mm 14mm 1/2 51mm 27mm
T1352SET 1/2 Set of above cutters

FLAT SASH OVOLO

A wide flat ovolo for window
frames. Gives a traditional look
but will accommodate double
glazed units.

Part No. A B C D E

T1362 1/2 12.0mm 11mm 1/2 38mm 40mm
T1367 1/2 15.0mm 6mm 1/2 48mm 49mm
T1362SET 1/2 Set of above cutters

LAMBS TONGUE SASH
A traditional lambs tongue mould
to produce window frames and
glazing bars.

Part No. A B C D E
T1387 1/2 6.5mm 18mm 1/2 45mm 29mm
T1389 1/2 6.5mm 12mm 1/2 52mm 32mm
T1387SET 1/2 Set of above cutters

Orderline 01580 890500 60 Fax orders 01580 890222
