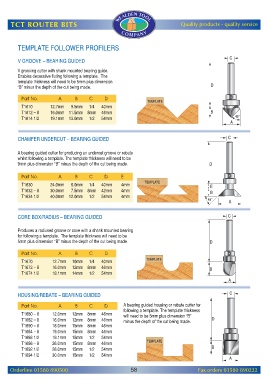

Page 60 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

TEMPLATE FOLLOWER PROFILERS

V GROOVE – BEARING GUIDED

V grooving cutter with shank mounted bearing guide.
Enables decorative fluting following a template. The
template thickness will need to be 5mm plus dimension
“B” minus the depth of the cut being made.

Part No. A B C D
T1610 12.7mm 9.5mm 1/4 40mm
T1612 – 8 16.0mm 11.5mm 8mm 46mm
T1614 1/2 19.1mm 13.0mm 1/2 54mm

CHAMFER UNDERCUT – BEARING GUIDED

A bearing guided cutter for producing an undercut groove or rebate
whilst following a template. The template thickness will need to be
9mm plus dimension “B” minus the depth of the cut being made.

Part No. A B C D E

T1630 24.0mm 6.0mm 1/4 40mm 4mm
T1632 – 8 30.0mm 7.5mm 8mm 42mm 4mm
T1634 1/2 40.0mm 12.0mm 1/2 54mm 4mm

CORE BOX/RADIUS – BEARING GUIDED

Produces a radiused groove or cove with a shank mounted bearing
for following a template. The template thickness will need to be
5mm plus dimension “B” minus the depth of the cut being made.

Part No. A B C D
T1670 12.7mm 10mm 1/4 40mm
T1672 – 8 16.0mm 12mm 8mm 46mm
T1674 1/2 19.1mm 14mm 1/2 54mm

HOUSING/REBATE – BEARING GUIDED

Part No. A B C D A bearing guided housing or rebate cutter for
following a template. The template thickness
T1680 – 8 12.0mm 12mm 8mm 46mm will need to be 5mm plus dimension “B”
T1682 – 8 16.0mm 12mm 8mm 46mm minus the depth of the cut being made.
T1690 – 8 18.0mm 15mm 8mm 46mm
T1684 – 8 19.0mm 15mm 8mm 46mm
T1688 1/2 19.1mm 15mm 1/2 54mm
T1686 – 8 26.0mm 15mm 8mm 46mm
T1692 1/2 26.0mm 15mm 1/2 54mm
T1694 1/2 30.0mm 15mm 1/2 54mm
