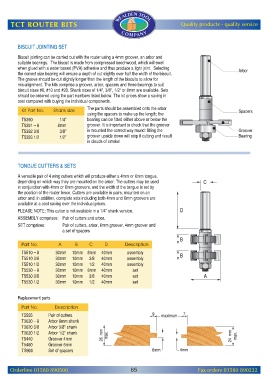

Page 67 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

BISCUIT JOINTING SET

Biscuit jointing can be carried out with the router using a 4mm groover, an arbor and
suitable bearings. The biscuit is made from compressed beechwood, which will swell
when glued with a water based (PVA) adhesive and thus produce a tight joint. Selecting
the correct size bearing will ensure a depth of cut slightly over half the width of the biscuit.
The groove should be cut slightly longer than the length of the biscuits to allow for
mis-alignment. The kits comprise a groover, arbor, spacers and three bearings to suit
biscuit sizes #0, #10 and #20. Shank sizes of 1/4", 3/8", 1/2" or 8mm are available. Sets
should be ordered using the part numbers listed below. The kit prices show a saving in
cost compared with buying the individual components.
The parts should be assembled onto the arbor
Kit Part No. Shank size
using the spacers to make up the length; the
T5390 1/4” bearing can be fitted either above or below the
T5391 – 8 8mm groover. It is important to check that the groover
T5392 3/8 3/8” is mounted the correct way round: fitting the
T5393 1/2 1/2” groover upside down will stop it cutting and result
in clouds of smoke!

TONGUE CUTTERS & SETS

A versatile pair of 4 wing cutters which will produce either a 4mm or 6mm tongue,
depending on which way they are mounted on the arbor. The cutters may be used
in conjunction with 4mm or 6mm groovers, and the width of the tongue is set by
the position of the router fence. Cutters are available in pairs, mounted on an
arbor and, in addition, complete sets including both 4mm and 6mm groovers are
available at a cost saving over the individual prices.
PLEASE NOTE: This cutter is not available in a 1/4" shank version.
ASSEMBLY comprises: Pair of cutters and arbor.
SET comprises: Pair of cutters, arbor, 6mm groover, 4mm groover and
a set of spacers

Part No. A B C D Description
T5510 – 8 30mm 10mm 8mm 40mm assembly
T5510 3/8 30mm 10mm 3/8 40mm assembly
T5510 1/2 30mm 10mm 1/2 40mm assembly
T5530 – 8 30mm 10mm 8mm 40mm set
T5530 3/8 30mm 10mm 3/8 40mm set
T5530 1/2 30mm 10mm 1/2 40mm set

Replacement parts

Part No. Description
T5505 Pair of cutters
T3020 – 8 Arbor 8mm shank
T3020 3/8 Arbor 3/8" shank
T3020 1/2 Arbor 1/2" shank
T5440 Groover 4mm
T5460 Groover 6mm
TS900 Set of spacers

Orderline 01580 890500 65 Fax orders 01580 890222
