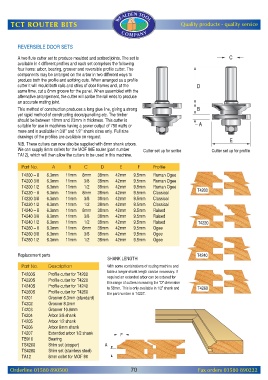

Page 72 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

REVERSIBLE DOOR SETS

A two flute cutter set to produce moulded and scribed joints. The set is
available in 4 different profiles and each set comprises the following
four items: arbor, bearing, groover and reversible profile cutter. The
components may be arranged on the arbor in two different ways to
produce both the profile and scribing cuts. When arranged as a profile
cutter it will mould both rails and stiles of door frames and, at the
same time, cut a 6mm groove for the panel. When assembled with the
alternative arrangement, the cutter will scribe the rail ends to produce
an accurate mating joint.
This method of construction produces a long glue line, giving a strong
yet rapid method of constructing doors/panelling etc. The timber
should be between 18mm and 23mm in thickness. This cutter is
suitable for use in machines having a power output of 750 watts or
more and is available in 3/8’’ and 1/2’’ shank sizes only. Full size
drawings of the profiles are available on request.
N.B. These cutters can now also be supplied with 8mm shank arbors.
We can supply 8mm collets for the MOF 96E router (part number
TA12), which will then allow the cutters to be used in this machine.

Part No. A B C D E F Profile
T4200 – 8 6.3mm 11mm 8mm 38mm 42mm 9.5mm Roman Ogee
T4200 3/8 6.3mm 11mm 3/8 38mm 42mm 9.5mm Roman Ogee
T4200 1/2 6.3mm 11mm 1/2 38mm 42mm 9.5mm Roman Ogee
T4220 – 8 6.3mm 11mm 8mm 38mm 42mm 9.5mm Classical
T4220 3/8 6.3mm 11mm 3/8 38mm 42mm 9.5mm Classical
T4220 1/2 6.3mm 11mm 1/2 38mm 42mm 9.5mm Classical
T4240 – 8 6.3mm 11mm 8mm 38mm 42mm 9.5mm Raised
T4240 3/8 6.3mm 11mm 3/8 38mm 42mm 9.5mm Raised
T4240 1/2 6.3mm 11mm 1/2 38mm 42mm 9.5mm Raised
T4260 – 8 6.3mm 11mm 8mm 38mm 42mm 9.5mm Ogee
T4260 3/8 6.3mm 11mm 3/8 38mm 42mm 9.5mm Ogee
T4260 1/2 6.3mm 11mm 1/2 38mm 42mm 9.5mm Ogee

Replacement parts
SHANK LENGTH
Part No. Description With some combinations of routing machine and
table a longer shank length can be necessary. If
T4200S Profile cutter for T4200
required an extended arbor can be ordered for
T4220S Profile cutter for T4220
this range of cutters increasing the “D” dimension
T4240S Profile cutter for T4240
to 58mm. This is only available in 1/2” shank and
T4260S Profile cutter for T4260 the part number is T4207.
T4201 Groover 6.3mm (standard)
T4202 Groover 8.0mm
T4203 Groover 10.0mm
T4204 Arbor 3/8 shank
T4205 Arbor 1/2 shank
T4206 Arbor 8mm shank
T4207 Extended arbor 1/2 shank
TB910 Bearing
TS4200 Shim set (copper)
TS4280 Shim set (stainless steel)
TA12 8mm collet for MOF 96
