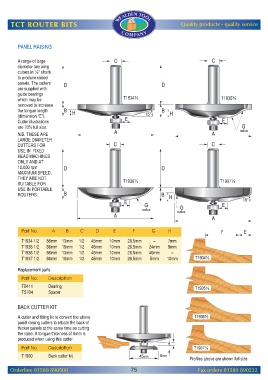

Page 77 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

PANEL RAISING

A range of large
diameter two wing
cutters in ½" shank
to produce raised
panels. The cutters
are supplied with
guide bearings
T1934½ T1935½
which may be
removed to increase
the tongue length
(dimension “E”).
Cutter illustrations
are 70% full size.
N.B. THESE ARE
LARGE DIAMETER
CUTTERS FOR
USE IN FIXED
HEAD MACHINES
ONLY AND AT
12,000 rpm
MAXIMUM SPEED.
THEY ARE NOT T1936½ T1937½
SUITABLE FOR
USE IN PORTABLE
ROUTERS.

Part No. A B C D E F G H
T1934 1/2 86mm 13mm 1/2 45mm 10mm 26.5mm – 7mm
T1935 1/2 86mm 15mm 1/2 45mm 10mm 26.5mm 24mm 9mm
T1936 1/2 86mm 13mm 1/2 45mm 10mm 26.5mm 40mm –
T1937 1/2 86mm 16mm 1/2 45mm 10mm 26.5mm 5mm 10mm

Replacement parts
Part No. Description

TB411 Bearing
TS704 Spacer

BACK CUTTER KIT

A cutter and fitting kit to convert the above
panel raising cutters to rebate the back of
thicker panels at the same time as cutting
the raise. A tongue thickness of 6mm is
produced when using this cutter.

Part No. Description
T1960 Back cutter kit
Profiles above are shown full size
