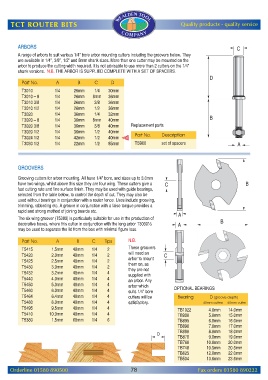

Page 80 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ARBORS

A range of arbors to suit various 1/4" bore arbor mounting cutters including the groovers below. They
are available in 1/4", 3/8", 1/2" and 8mm shank sizes. More than one cutter may be mounted on the
arbor to produce the cutting width required. It is not advisable to use more than 2 cutters on the 1/4"
shank versions. N.B. THE ARBOR IS SUPPLIED COMPLETE WITH A SET OF SPACERS.

Part No. A B C D

T3010 1/4 26mm 1/4 30mm
T3010 – 8 1/4 26mm 8mm 36mm
T3010 3/8 1/4 26mm 3/8 36mm
T3010 1/2 1/4 26mm 1/2 36mm
T3020 1/4 36mm 1/4 32mm
T3020 – 8 1/4 36mm 8mm 40mm
T3020 3/8 1/4 36mm 3/8 40mm Replacement parts
T3020 1/2 1/4 36mm 1/2 40mm
Part No. Description
T3024 1/2 1/4 42mm 1/2 40mm
T3030 1/2 1/4 22mm 1/2 85mm TS900 set of spacers

GROOVERS

Grooving cutters for arbor mounting. All have 1/4" bore, and sizes up to 3.0mm
have two wings, whilst above this size they are four wing. These cutters give a
fast cutting rate and fine surface finish. They may be used with guide bearings,
selected from the table below, to control the depth of cut. They may also be
used without bearings in conjunction with a router fence. Uses include grooving,
trimming, rabbeting etc. A groove in conjunction with a false tongue provides a
rapid and strong method of joining boards etc.
The six wing groover (T5380) is particularly suitable for use in the production of
decorative boxes, where this cutter in conjunction with the long arbor T3030½
may be used to separate the lid from the box with minimal figure loss.

Part No. A B C Tips N.B.
T5415 1.5mm 40mm 1/4 2 These groovers
T5420 2.0mm 40mm 1/4 2 will need an
arbor to mount
T5425 2.5mm 40mm 1/4 2
them on, as
T5430 3.0mm 40mm 1/4 2 they are not
T5432 3.2mm 40mm 1/4 4 supplied with
T5440 4.0mm 40mm 1/4 4 an arbor. Any
T5450 5.0mm 40mm 1/4 4 arbor which
T5460 6.0mm 40mm 1/4 4 suits 1/4” bore OPTIONAL BEARINGS
T5464 6.4mm 40mm 1/4 4 cutters will be Bearing D (groove depth)
T5480 8.0mm 40mm 1/4 4 satisfactory. 40mm cutters 60mm cutter
T5495 9.5mm 40mm 1/4 4 TB1022 4.0mm 14.0mm
T5410 10.0mm 40mm 1/4 4 TB900 5.0mm 15.0mm
T5380 1.5mm 60mm 1/4 6 TB895 6.0mm 16.0mm
TB890 7.0mm 17.0mm
TB880 8.0mm 18.0mm
TB870 9.0mm 19.0mm
TB760 10.0mm 20.0mm
TB748 10.5mm 20.5mm
TB625 12.0mm 22.0mm
TB504 13.6mm 23.6mm
