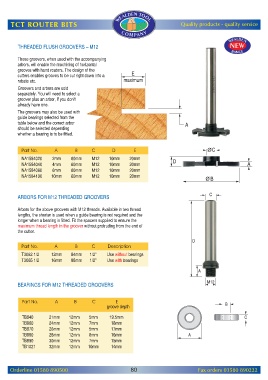

Page 82 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

THREADED FLUSH GROOVERS – M12

These groovers, when used with the accompanying
arbors, will enable the machining of horizontal
grooves with hand routers. The design of the
cutters enables grooves to be cut right down into a
rebate etc.
Groovers and arbors are sold
separately. You will need to select a
groover plus an arbor, if you don't
already have one.
The groovers may also be used with
guide bearings selected from the
table below and the correct arbor
should be selected depending
whether a bearing is to be fitted.

Part No. A B C D E
NA1584020 2mm 60mm M12 10mm 20mm
NA1584040 4mm 60mm M12 10mm 20mm
NA1584060 6mm 60mm M12 10mm 20mm
NA1584100 10mm 60mm M12 10mm 20mm

ARBORS FOR M12 THREADED GROOVERS

Arbors for the above groovers with M12 threads. Available in two thread
lengths, the shorter is used when a guide bearing is not required and the
longer when a bearing is fitted. Fit the spacers supplied to ensure the
maximum thread length in the groover without protruding from the end of
the cutter.

Part No. A B C Description
T3062 1/2 12mm 84mm 1/2" Use without bearings
T3065 1/2 16mm 88mm 1/2" Use with bearings

BEARINGS FOR M12 THREADED GROOVERS

Part No. A B C E
groove depth

TB940 21mm 12mm 5mm 19.5mm
TB960 24mm 12mm 7mm 18mm
TB970 26mm 12mm 5mm 17mm
TB980 28mm 12mm 8mm 16mm
TB990 30mm 12mm 7mm 15mm
TB1021 32mm 12mm 10mm 14mm
