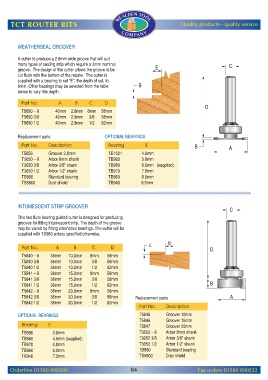

Page 86 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

WEATHERSEAL GROOVER

A cutter to produce a 2.8mm wide groove that will suit
many types of sealing strip which require a 3mm nominal
groove. The design of the cutter allows the groove to be
cut flush with the bottom of the rebate. The cutter is
supplied with a bearing to set “E”, the depth of cut, to
6mm. Other bearings may be selected from the table
below to vary this depth.

Part No. A B C D
T5850 – 8 40mm 2.8mm 8mm 58mm
T5850 3/8 40mm 2.8mm 3/8 58mm
T5850 1/2 40mm 2.8mm 1/2 82mm

Replacement parts OPTIONAL BEARINGS

Part No. Description Bearing E
T5856 Groover 2.8mm TB1021 4.0mm
T3050 – 8 Arbor 8mm shank TB990 5.0mm
T3050 3/8 Arbor 3/8" shank TB980 6.0mm (supplied)
T3050 1/2 Arbor 1/2" shank TB970 7.0mm
TB980 Standard bearing TB960 8.0mm
TS5800 Dust shield TB940 9.5mm

INTUMESCENT STRIP GROOVER

This two flute bearing guided cutter is designed for producing
grooves for fitting intumescent strip. The depth of the groove
may be varied by fitting alternative bearings. The cutter will be
supplied with TB980 unless specified otherwise.

Part No. A B C D
T5840 – 8 36mm 10.0mm 8mm 58mm
T5840 3/8 36mm 10.0mm 3/8 58mm
T5840 1/2 36mm 10.0mm 1/2 82mm
T5841 – 8 36mm 15.0mm 8mm 58mm
T5841 3/8 36mm 15.0mm 3/8 58mm
T5841 1/2 36mm 15.0mm 1/2 82mm
T5842 – 8 36mm 20.0mm 8mm 58mm
T5842 3/8 36mm 20.0mm 3/8 58mm Replacement parts
T5842 1/2 36mm 20.0mm 1/2 82mm
Part No. Description

OPTIONAL BEARINGS T5845 Groover 10mm
T5846 Groover 15mm
Bearing E T5847 Groover 20mm

TB990 3.0mm T3052 – 8 Arbor 8mm shank
TB980 4.0mm (supplied) T3052 3/8 Arbor 3/8" shank
TB970 5.0mm T3052 1/2 Arbor 1/2" shank
TB960 6.0mm TB980 Standard bearing
TB940 7.5mm TS5800 Dust shield
