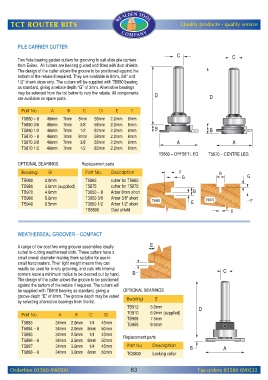

Page 85 - Router Catalogue 2021
P. 85
WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y
PILE CARRIER CUTTER
Two flute bearing guided cutters for grooving to suit slide pile carriers
from Exitex. All cutters are bearing guided and fitted with dust shields.
The design of the cutter allows the groove to be positioned against the
bottom of the rebate if required. They are available in 8mm, 3/8" and
1/2" shank sizes only. The cutters will be supplied with TB980 bearing
as standard, giving a rebate depth “G” of 3mm. Alternative bearings
may be selected from the list below to vary the rebate. All components
are available as spare parts.
Part No. A B C D E F
T5860 – 8 46mm 7mm 8mm 58mm 2.0mm 6mm
T5860 3/8 46mm 7mm 3/8 58mm 2.0mm 6mm
T5860 1/2 46mm 7mm 1/2 82mm 2.0mm 6mm
T5870 – 8 46mm 7mm 8mm 58mm 2.0mm 6mm
T5870 3/8 46mm 7mm 3/8 58mm 2.0mm 6mm
T5870 1/2 46mm 7mm 1/2 82mm 2.0mm 6mm
T5860 – OFFSET LEG T5870 – CENTRE LEG
OPTIONAL BEARINGS Replacement parts
Bearing G Part No. Description
TB990 2.0mm T5865 cutter for T5860
TB980 3.0mm (supplied) T5875 cutter for T5870
TB970 4.0mm T3050 – 8 Arbor 8mm short
TB960 5.0mm T3050 3/8 Arbor 3/8" short
TB940 6.5mm T3050 1/2 Arbor 1/2" short
TS5800 Dust shield
WEATHERSEAL GROOVER – COMPACT
A range of low cost two wing groover assemblies ideally
suited to cutting weatherseal slots. These cutters have a
small overall diameter making them suitable for use in
small hand routers. Their light weight means they can
readily be used for in-situ grooving, and cuts into internal
corners leave a minimum radius to be cleaned out by hand.
The design of the cutter allows the groove to be positioned
against the bottom of the rebate if required. The cutters will
be supplied with TB910 bearing as standard, giving a OPTIONAL BEARINGS
groove depth “E” of 6mm. The groove depth may be varied Bearing E
by selecting alternative bearings from the list.
TB912 5.0mm
TB910 6.0mm (supplied)
Part No. A B C D
TB908 7.5mm
T5883 34mm 2.0mm 1/4 45mm TB655 9.0mm
T5884 – 8 34mm 2.0mm 8mm 50mm
T5885 34mm 2.5mm 1/4 45mm
Replacement parts
T5886 – 8 34mm 2.5mm 8mm 50mm
T5887 34mm 3.0mm 1/4 45mm Part No. Description
T5888 – 8 34mm 3.0mm 8mm 50mm TC6800 Locking collar
