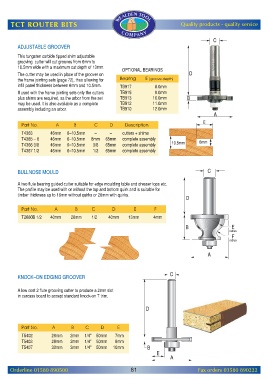

Page 83 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ADJUSTABLE GROOVER

This tungsten carbide tipped shim adjustable
grooving cutter will cut grooves from 6mm to
10.5mm wide with a maximum cut depth of 13mm.
OPTIONAL BEARINGS
The cutter may be used in place of the groover on
the frame jointing sets (page 72), thus allowing for Bearing E (groove depth)
infill panel thickness between 6mm and 10.5mm. TB917 8.0mm
If used with the frame jointing sets only the cutters TB915 9.0mm
plus shims are required, as the arbor from the set TB913 10.0mm
may be used. It is also available as a complete TB912 11.0mm
assembly including an arbor. TB910 12.0mm

Part No. A B C D Description
T4363 46mm 6–10.5mm – – cutters + shims
T4365 – 8 46mm 6–10.5mm 8mm 65mm complete assembly
T4366 3/8 46mm 6–10.5mm 3/8 65mm complete assembly
T4367 1/2 46mm 6–10.5mm 1/2 65mm complete assembly

BULLNOSE MOULD

A two flute bearing guided cutter suitable for edge moulding table and dresser tops etc.
The profile may be used with or without the top and bottom quirk and is suitable for
timber thickness up to 16mm without quirks or 26mm with quirks.

Part No. A B C D E F

T2660B 1/2 40mm 26mm 1/2 40mm 13mm 4mm

KNOCK–ON EDGING GROOVER

A low cost 2 flute grooving cutter to produce a 2mm slot
in carcass board to accept standard knock-on T trim.

Part No. A B C D E
T5402 26mm 2mm 1/4" 50mm 7mm
T5403 28mm 2mm 1/4" 50mm 9mm
T5407 30mm 3mm 1/4" 50mm 10mm

Orderline 01580 890500 81 Fax orders 01580 890222
