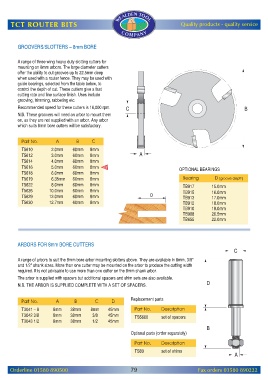

Page 81 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

GROOVERS/SLOTTERS – 8mm BORE

A range of three wing heavy duty slotting cutters for
mounting on 8mm arbors. The large diameter cutters
offer the ability to cut grooves up to 22.5mm deep
when used with a router fence. They may be used with
guide bearings, selected from the table below, to
control the depth of cut. These cutters give a fast
cutting rate and fine surface finish. Uses include
grooving, trimming, rabbeting etc.
Recommended speed for these cutters is 16,000 rpm.
N.B. These groovers will need an arbor to mount them
on, as they are not supplied with an arbor. Any arbor
which suits 8mm bore cutters will be satisfactory.

Part No. A B C
T5610 2.0mm 60mm 8mm
T5612 3.0mm 60mm 8mm
T5614 4.0mm 60mm 8mm
T5616 5.0mm 60mm 8mm OPTIONAL BEARINGS
T5618 6.0mm 60mm 8mm
T5619 6.35mm 60mm 8mm Bearing D (groove depth)
T5622 8.0mm 60mm 8mm TB917 15.0mm
T5626 10.0mm 60mm 8mm TB915 16.0mm
T5629 12.0mm 60mm 8mm TB913 17.0mm
T5630 12.7mm 60mm 8mm TB912 18.0mm
TB910 19.0mm
TB908 20.5mm
TB655 22.0mm

ARBORS FOR 8mm BORE CUTTERS

A range of arbors to suit the 8mm bore arbor mounting slotters above. They are available in 8mm, 3/8"
and 1/2" shank sizes. More than one cutter may be mounted on the arbor to produce the cutting width
required. It is not advisable to use more than one cutter on the 8mm shank arbor.
The arbor is supplied with spacers but additional spacers and shim sets are also available.
N.B. THE ARBOR IS SUPPLIED COMPLETE WITH A SET OF SPACERS.

Replacement parts
Part No. A B C D
T3041 – 8 8mm 38mm 8mm 45mm Part No. Description
T3042 3/8 8mm 38mm 3/8 45mm TS5600 set of spacers
T3043 1/2 8mm 38mm 1/2 45mm

Optional parts (order separately)
Part No. Description

TS80 set of shims
