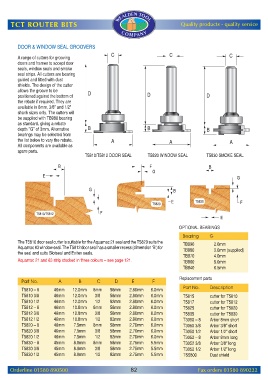

Page 84 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

DOOR & WINDOW SEAL GROOVERS

A range of cutters for grooving
doors and frames to accept door
seals, window seals and smoke
seal strips. All cutters are bearing
guided and fitted with dust
shields. The design of the cutter
allows the groove to be
positioned against the bottom of
the rebate if required. They are
available in 8mm, 3/8" and 1/2"
shank sizes only. The cutters will
be supplied with TB980 bearing
as standard, giving a rebate
depth “G” of 3mm. Alternative
bearings may be selected from
the list below to vary the rebate.
All components are available as
spare parts.
T5810/T5812 DOOR SEAL T5820 WINDOW SEAL T5830 SMOKE SEAL

OPTIONAL BEARINGS

Bearing G
The T5810 door seal cutter is suitable for the Aquamac 21 seal and the T5820 suits the TB990 2.0mm
Aquamac63windowseal.TheT5812doorsealhasasmallerrecess(dimension‘B’)for TB980 3.0mm (supplied)
the seal and suits Slotseal and Exitex seals.
TB970 4.0mm
Aquamac 21 and 63 strip stocked in three colours – see page 121. TB960 5.0mm
TB940 6.5mm
Replacement parts
Part No. A B C D E F
Part No. Description
T5810 – 8 46mm 12.0mm 8mm 58mm 2.80mm 6.0mm
T5810 3/8 46mm 12.0mm 3/8 58mm 2.80mm 6.0mm T5815 cutter for T5810
T5810 1/2 46mm 12.0mm 1/2 82mm 2.80mm 6.0mm T5817 cutter for T5812
T5812 – 8 46mm 10.8mm 8mm 58mm 2.80mm 6.0mm T5825 cutter for T5820
T5812 3/8 46mm 10.8mm 3/8 58mm 2.80mm 6.0mm T5835 cutter for T5830
T5812 1/2 46mm 10.8mm 1/2 82mm 2.80mm 6.0mm T3050 – 8 Arbor 8mm short
T5820 – 8 46mm 7.5mm 8mm 58mm 2.70mm 6.0mm T3050 3/8 Arbor 3/8" short
T5820 3/8 46mm 7.5mm 3/8 58mm 2.70mm 6.0mm T3050 1/2 Arbor 1/2" short
T5820 1/2 46mm 7.5mm 1/2 82mm 2.70mm 6.0mm T3052 – 8 Arbor 8mm long
T5830 – 8 45mm 8.0mm 8mm 58mm 2.75mm 5.5mm T3052 3/8 Arbor 3/8" long
T5830 3/8 45mm 8.0mm 3/8 58mm 2.75mm 5.5mm T3052 1/2 Arbor 1/2" long
T5830 1/2 45mm 8.0mm 1/2 82mm 2.75mm 5.5mm TS5800 Dust shield
