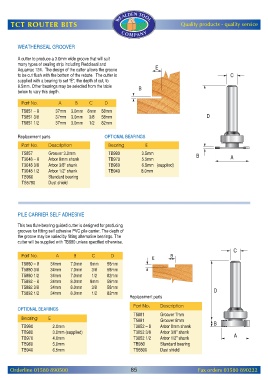

Page 87 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

WEATHERSEAL GROOVER

A cutter to produce a 3.0mm wide groove that will suit
many types of sealing strip including Reddiseal and
Aquamac 124. The design of the cutter allows the groove
to be cut flush with the bottom of the rebate. The cutter is
supplied with a bearing to set “E”, the depth of cut, to
6.5mm. Other bearings may be selected from the table
below to vary this depth.

Part No. A B C D
T5851 – 8 37mm 3.0mm 8mm 58mm
T5851 3/8 37mm 3.0mm 3/8 58mm
T5851 1/2 37mm 3.0mm 1/2 82mm

Replacement parts OPTIONAL BEARINGS

Part No. Description Bearing E
T5857 Groover 3.0mm TB990 3.5mm
T3048 – 8 Arbor 8mm shank TB970 5.5mm
T3048 3/8 Arbor 3/8" shank TB960 6.5mm (supplied)
T3048 1/2 Arbor 1/2" shank TB940 8.0mm
TB960 Standard bearing
TS5790 Dust shield

PILE CARRIER SELF ADHESIVE

This two flute bearing guided cutter is designed for producing
grooves for fitting self adhesive PVC pile carrier. The depth of
the groove may be varied by fitting alternative bearings. The
cutter will be supplied with TB980 unless specified otherwise.

Part No. A B C D
T5880 – 8 34mm 7.0mm 8mm 58mm
T5880 3/8 34mm 7.0mm 3/8 58mm
T5880 1/2 34mm 7.0mm 1/2 82mm
T5892 – 8 34mm 8.0mm 8mm 58mm
T5892 3/8 34mm 8.0mm 3/8 58mm
T5892 1/2 34mm 8.0mm 1/2 82mm
Replacement parts
Part No. Description
OPTIONAL BEARINGS
T5881 Groover 7mm
Bearing E
T5891 Groover 8mm
TB990 2.0mm T3052 – 8 Arbor 8mm shank
TB980 3.0mm (supplied) T3052 3/8 Arbor 3/8" shank
TB970 4.0mm T3052 1/2 Arbor 1/2" shank
TB960 5.0mm TB980 Standard bearing
TB940 6.5mm TS5800 Dust shield

Orderline 01580 890500 85 Fax orders 01580 890222
