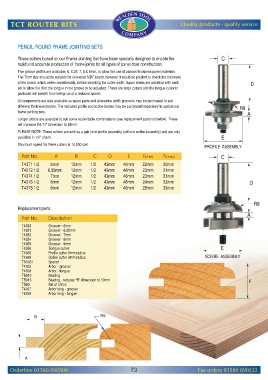

Page 75 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

PENCIL ROUND FRAME JOINTING SETS

These cutters based on our Frame Jointing Set have been specially designed to enable the
rapid and accurate production of frame joints for all types of panel door construction.
Five groove widths are available, 6, 6.35, 7, 8 & 9mm, to allow the use of various thickness panel materials.
The 7mm size should be suitable for veneered MDF board, however it would be prudent to check the thickness
of the board, which varies considerably, before selecting the cutter width. Spare shims are provided with each
set to allow the fit of the tongue in the groove to be adjusted. These are large cutters and the tongue cutter in
particular will benefit from being run at a reduced speed.
All components are also available as spare parts and alternative width groovers may be purchased to suit
different thickness boards. The radiused profile and scribe blades may be purchased separately to update our
frame jointing sets.
Longer arbors are available to suit some router/table combinations (see replacement parts list below). These
will increase the “D” dimension to 58mm.
PLEASE NOTE: These cutters are sold as a pair (one profile assembly and one scribe assembly) and are only
available in 1/2" shank.
Maximum speed for these cutters is 14,000 rpm.

Part No. A B C D E F(min) F(max)
T4371 1/2 6mm 12mm 1/2 43mm 46mm 22mm 30mm
T4372 1/2 6.35mm 12mm 1/2 43mm 46mm 23mm 31mm
T4374 1/2 7mm 12mm 1/2 43mm 46mm 23mm 31mm
T4376 1/2 8mm 12mm 1/2 43mm 46mm 24mm 32mm
T4378 1/2 9mm 12mm 1/2 43mm 46mm 25mm 33mm

Replacement parts

Part No. Description
T4352 Groover - 6mm
T4351 Groover - 6.35mm
T4353 Groover - 7mm
T4354 Groover - 8mm
T4355 Groover - 9mm
T4356 Tongue cutter
T4368 Profile cutter 9mm radius
T4369 Scribe cutter 9mm radius
TS4351 Spacer
T4205 Arbor - groover
T4358 Arbor - tongue
TB910 Bearing
TB913 Bearing - reduces “B” dimension to 10mm
TS80 Set of shims
T4207 Arbor long - groover
T4359 Arbor long - tongue
