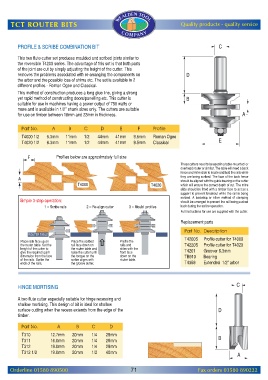

Page 73 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

PROFILE & SCRIBE COMBINATION BIT

This two flute cutter set produces moulded and scribed joints similar to
the reversible T4200 series. The advantage of this set is that both parts
of the joint are cut by simply adjusting the height of the cutter. This
removes the problems associated with re-arranging the components on
the arbor and the possible loss of shims etc. The set is available in 2
different profiles - Roman Ogee and Classical.
This method of construction produces a long glue line, giving a strong
yet rapid method of constructing doors/panelling etc. This cutter is
suitable for use in machines having a power output of 750 watts or
more and is available in 1/2’’ shank sizes only. The cutters are suitable
for use on timber between 18mm and 23mm in thickness.

Part No. A B C D E F Profile
T4000 1/2 6.3mm 11mm 1/2 44mm 41mm 9.5mm Roman Ogee
T4020 1/2 6.3mm 11mm 1/2 44mm 41mm 9.5mm Classical

Profiles below are approximately full size
These cutters need to be used in a table-mounted or
overhead router or similar. The table will need a back
fence and mitre slide to locate and hold the rails while
they are being scribed. The face of the back fence
shouldbealignedwiththeguidebearing onthecutter
which will ensure the correct depth of cut. The mitre
slide should be fitted with a timber face to act as a
support to prevent breakout while the rail is being
scribed. A backstop or other method of clamping
Simple 3-step operation: should be arranged to prevent the rail being pushed
1 – Scribe rails 2 – Re-align cutter 3 – Mould profiles back during the scribe operation.
Full instructions for use are supplied with the cutter.

Replacement parts

Part No. Description
T4200S Profile cutter for T4000
Place rails face up on Place the scribed Profile the
the router table. Set the rail face down on rails and T4220S Profile cutter for T4020
height of the cutter to the router table and stiles with the T4201 Groover 6.3mm
give the required quirk raise the cutter until front face
dimension from the face the tongue on the down on the TB910 Bearing
of the rails. Scribe the scribe aligns with router table.
ends of the rails. the groove cutter. T4359 Extended 1/2” arbor

HINGE MORTISING

A two flute cutter especially suitable for hinge recessing and
shallow mortising. This design of bit is ideal for shallow
surface cutting when the recess extends from the edge of the
timber.

Part No. A B C D
T310 12.7mm 20mm 1/4 28mm
T311 16.0mm 20mm 1/4 28mm
T312 19.0mm 20mm 1/4 28mm
T312 1/2 19.0mm 20mm 1/2 40mm

Orderline 01580 890500 71 Fax orders 01580 890222
