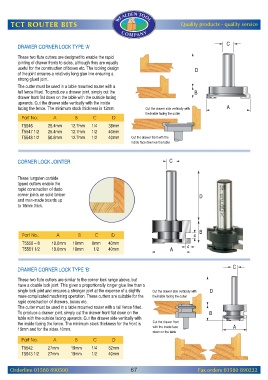

DRAWER CORNER LOCK TYPE ‘A’

These two flute cutters are designed to enable the rapid
jointing of drawer fronts to sides, although they are equally
useful for the construction of boxes etc. The locking design
of the joint ensures a relatively long glue line ensuring a
strong glued joint.
The cutter must be used in a table mounted router with a
tall fence fitted. To produce a drawer joint, simply cut the
drawer front flat down on the table with the outside facing
upwards. Cut the drawer side vertically with the inside
facing the fence. The minimum stock thickness is 12mm. Cut the drawer side vertically with
the inside facing the cutter
Part No. A B C D
T5546 25.4mm 12.7mm 1/4 38mm
T5547 1/2 25.4mm 12.7mm 1/2 40mm
T5548 1/2 50.8mm 12.7mm 1/2 40mm Cut the drawer front with the
inside face down on the table

CORNER LOCK JOINTER

These tungsten carbide
tipped cutters enable the
rapid construction of dado
corner joints on solid timber
and man-made boards up
to 16mm thick.

Part No. A B C D
T5550 – 8 19.0mm 18mm 8mm 40mm
T5551 1/2 19.0mm 18mm 1/2 40mm

DRAWER CORNER LOCK TYPE ‘B’

These two flute cutters are similar to the corner lock range above, but
have a double lock joint. This gives a proportionally longer glue line than a
single lock joint and ensures a stronger joint at the expense of a slightly Cut the drawer side vertically with
more complicated machining operation. These cutters are suitable for the the inside facing the cutter
rapid construction of drawers, boxes etc.
The cutter must be used in a table mounted router with a tall fence fitted.
To produce a drawer joint, simply cut the drawer front flat down on the
table with the outside facing upwards. Cut the drawer side vertically with
the inside facing the fence. The minimum stock thickness for the front is Cut the drawer front
19mm and for the sides 10mm. with the inside face
down on the table
Part No. A B C D
T5542 27mm 19mm 1/4 32mm
T5543 1/2 27mm 19mm 1/2 40mm
