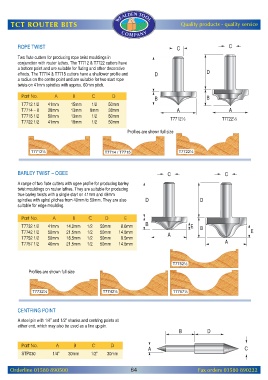

Page 66 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ROPE TWIST

Two flute cutters for producing rope twist mouldings in
conjunction with router lathes. The T7712 & T7722 cutters have
a bottom point and are suitable for fluting and other decorative
effects. The T7714 & T7715 cutters have a shallower profile and
a radius on the centre point and are suitable for two start rope
twists on 41mm spindles with approx. 60mm pitch.

Part No. A B C D
T7712 1/2 41mm 15mm 1/2 50mm
T7714 – 8 38mm 13mm 8mm 38mm
T7715 1/2 50mm 13mm 1/2 50mm T7712½ T7722½
T7722 1/2 41mm 18mm 1/2 50mm

Profiles are shown full size

BARLEY TWIST – OGEE

A range of two flute cutters with ogee profile for producing barley
twist mouldings on router lathes. They are suitable for producing
true barley twists with a single start on 41mm and 49mm
spindles with spiral pitches from 40mm to 50mm. They are also
suitable for edge moulding.

Part No. A B C D E
T7732 1/2 41mm 14.0mm 1/2 50mm 8.0mm
T7742 1/2 50mm 21.5mm 1/2 50mm 14.5mm
T7752 1/2 50mm 16.5mm 1/2 50mm 9.5mm
T7757 1/2 46mm 21.5mm 1/2 50mm 14.5mm

Profiles are shown full size

CENTRING POINT

A steel pin with 1/4” and 1/2” shanks and centring points at
either end, which may also be used as a line up pin.

Part No. A B C D
STP030 1/4” 30mm 1/2” 30mm
