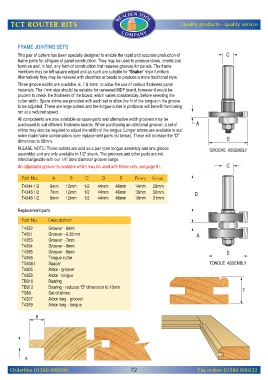

Page 74 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

FRAME JOINTING SETS

This pair of cutters has been specially designed to enable the rapid and accurate production of
frame joints for all types of panel construction. They may be used to produce doors, chests and
furniture and, in fact, any form of construction that requires grooves for panels. The frame
members may be left square edged and as such are suitable for “Shaker” style furniture.
Alternatively they may be relieved with chamfers or beads to produce a more traditional style.
Three groove widths are available, 6, 7 & 8mm, to allow the use of various thickness panel
materials. The 7mm size should be suitable for veneered MDF board, however it would be
prudent to check the thickness of the board, which varies considerably, before selecting the
cutter width. Spare shims are provided with each set to allow the fit of the tongue in the groove
to be adjusted. These are large cutters and the tongue cutter in particular will benefit from being
run at a reduced speed.
All components are also available as spare parts and alternative width groovers may be
purchased to suit different thickness boards. When purchasing an additional groover, a set of
shims may also be required to adjust the width of the tongue. Longer arbors are available to suit
some router/table combinations (see replacement parts list below). These will increase the “D”
dimension to 58mm.
PLEASE NOTE: These cutters are sold as a pair (one tongue assembly and one groove
assembly) and are only available in 1/2" shank. The groovers and other parts are not
interchangeable with our 1/4” bore diameter groover range.
An adjustable groover is available which may be used with these sets, see page 81.

Part No. A B C D E F(min) F(max)
T4344 1/2 6mm 12mm 1/2 44mm 46mm 14mm 29mm
T4346 1/2 7mm 12mm 1/2 44mm 46mm 15mm 30mm
T4348 1/2 8mm 12mm 1/2 44mm 46mm 16mm 31mm

Replacement parts
Part No. Description

T4352 Groover - 6mm
T4351 Groover - 6.35mm
T4353 Groover - 7mm
T4354 Groover - 8mm
T4355 Groover - 9mm
T4356 Tongue cutter
TS4351 Spacer
T4205 Arbor - groover
T4358 Arbor - tongue
TB910 Bearing
TB913 Bearing - reduces “B” dimension to 10mm
TS80 Set of shims
T4207 Arbor long - groover
T4359 Arbor long - tongue
