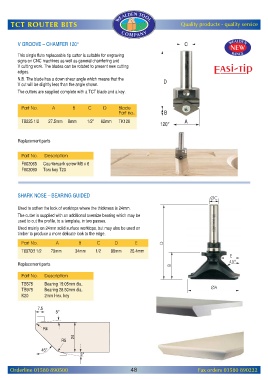

Page 50 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

V GROOVE – CHAMFER 120

This single flute replaceable tip cutter is suitable for engraving
signs on CNC machines as well as general chamfering and
V cutting work. The blades can be rotated to present new cutting
edges.
N.B. The blade has a down shear angle which means that the
V cut will be slightly less than the angle shown.
The cutters are supplied complete with a TCT blade and a key.

Part No. A B C D Blade
Part no.
T8225 1/2 27.5mm 8mm 1/2" 62mm TK120

Replacement parts

Part No. Description
F002065 Countersunk screw M5 x 6
F002090 Torx key T20

SHARK NOSE – BEARING GUIDED

Used to soften the look of worktops where the thickness is 24mm.
The cutter is supplied with an additional oversize bearing which may be
used to cut the profile, to a template, in two passes.
Used mainly on 24mm solid surface worktops, but may also be used on
timber to produce a more delicate look to the edge.

Part No. A B C D E
T6070B 1/2 70mm 34mm 1/2 98mm 25.4mm

Replacement parts

Part No. Description
TB575 Bearing 19.05mm dia.
TB975 Bearing 28.50mm dia.
K20 2mm Hex. key

Orderline 01580 890500 48 Fax orders 01580 890222
